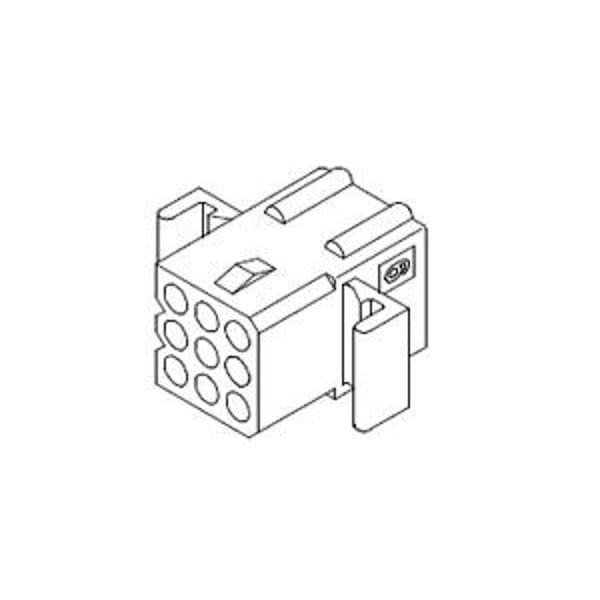

Rectangular Power Connector, 9 Contact(S), Male, Crimp Terminal, Receptacle

  • Mfr # 50361871

  • Zoro # G005913111

product price:
$
0.33
/ea
Sold in multiples of 300 for $99.00

Key Features

Type
Receptacle
Color
Natural
Number of Rows
3
Insulation Material
Nylon
Current
5 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
50361871
Zoro #
G005913111
UPC #
800756734651
Country of Origin
United States

Details

Item
Pin and Socket Power Connector
Type
Receptacle
Color
Natural
Number of Rows
3
Insulation Material
Nylon
Current
5 A
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-2
Series
1625
Connector Type
Receptacle
Material
Nylon
Standards
CSA Certified
Application
Power, Wire-to-Wire
Current Rating
5 A
Hole Center to Center
3.68 mm
Max. Temp.
105°C
Number of Contacts
9
Sub-Category
Crimp Housings
Flammability Rating
UL 94V-2
Polarized to Mating Part
Yes
Material - Resin
Nylon
UL
E29179
Current - Maximum per Contact
5.0A
Panel Mount
Yes
Keying to Mating Part
None
Temperature Range - Operating
-40° to +105°C
Stackable
No
Product Name
Standard .062"
Lock to Mating Part
Yes
Circuits Detail
3x3
Pitch - Mating Interface
3.68mm
Flammability
94V-2
Breakaway
No
CSA
LR19980
Glow-Wire Capable
No
