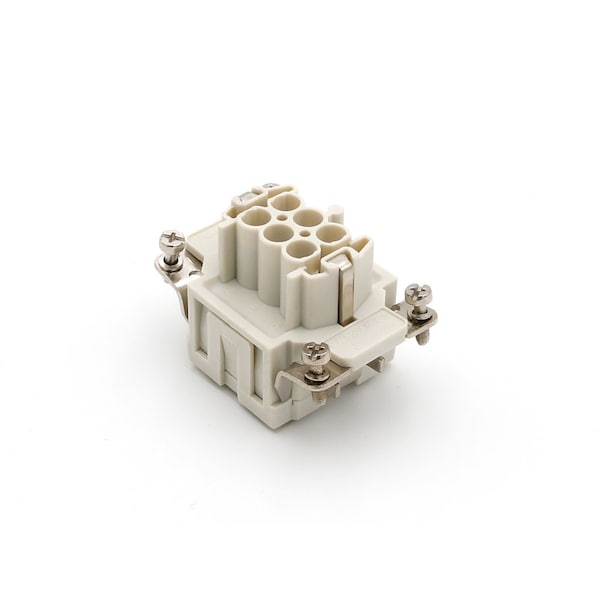

S-ES insert 6p FEM Spring term
Mfr # 936010203
Zoro # G300440268
product price: $21.35
/eaSold in multiples of 4 for $85.40
Key Features
Flammability
UL 94V-0
Poles
6
Polarized to Mating Part
Yes
Durability (mating cycles max)
500
Voltage - Maximum
500V
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
936010203
Zoro #
G300440268
UPC #
-
Country of Origin
China
Dimensions
Stripping Length
9.00-11.00mm
Wire Size AWG
14-26
Wire Size mm²
0.14-2.50
Component Size
6B «44x27»
Details
Flammability
UL 94V-0
Poles
6
Polarized to Mating Part
Yes
Durability (mating cycles max)
500
Voltage - Maximum
500V
Number of Rows
2
CSA
256883
Material - Contact
Copper Alloy
UL
E249674
Temperature Range - Operating
-40° to +125°C
Gender
Female
Insert Color
Grey
Material - Plating
Silver
Current - Maximum per Contact
16.0A
Material - Insert
Polycarbonate
Product Name
GWconnect
Insert Series
S-ES
Component Type
Inserts - Spring Terminal
Standard
CSA C22.2 NO. 182.3, EN 60664-1, EN 61984, UL 1977
Series
93601
