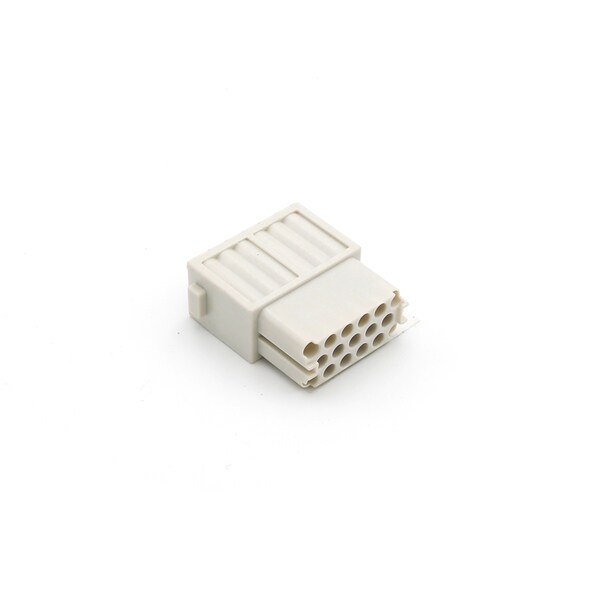

S-M 16/5 F ins Spring 5P 16A 400V
Mfr # 936010533
Zoro # G2084211
product price:Â
$
76.79
/ea
Sold in multiples of 1000 for $76,790.00
Key Features
Polarized to Mating Part
Yes
UL
E249674
Wire Size (AWG)
14-26
Gender
Female
Poles
5
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 936010533
- Zoro #
- G2084211
- UPC #
- -
- Country of Origin
- China
Dimensions
- Wire Size (AWG)
- 14-26
- Stripping Length
- 9.00mm
- Component Size
- «34.2x14.6»
Details
- Polarized to Mating Part
- Yes
- UL
- E249674
- Gender
- Female
- Poles
- 5
- Product Name
- GWconnect
- Temperature Range - Operating
- -40° to +125°C
- Number of Rows
- 2
- Component Type
- Inserts - Spring Terminal
- Material - Contact
- Copper Alloy
- Insert Series
- S-M16/5
- Durability (mating cycles max)
- 500
- Standard
- CSA C22.2 NO. 182.3, EN 60664-1, EN 61984, UL 1977
- Current - Maximum per Contact
- 16.0A
- Voltage - Maximum
- 400V
- Insert Color
- Grey
- Material - Plating
- Silver
- Series
- 93601
- Material - Insert
- Polycarbonate
