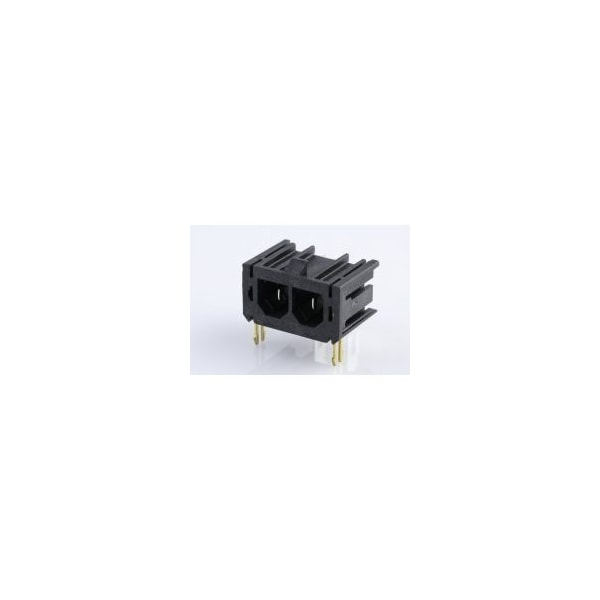

Sabre 2Ckt RA V0 Hdr 094Lk LgTail

  • Mfr # 43160-5302
  • Zoro # G2744871
product price:
$
1.35
/ea
Sold in multiples of 65 for $87.75

Key Features

Pitch - Termination Interface
7.50mm
PCB Thickness - Recommended
2.40mm
Color - Resin
Black
PCB Retention
Yes
Lock to Mating Part
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
43160-5302
Zoro #
G2744871
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
2.40mm
PC Tail Length
5.33mm

Details

Pitch - Termination Interface
7.50mm
Color - Resin
Black
PCB Retention
Yes
Lock to Mating Part
Yes
Pitch - Mating Interface
7.50mm
Keying to Mating Part
Yes
Material - Resin
High Temperature Thermoplastic
Orientation
Right Angle
UL
E29179
Voltage - Maximum
600V
Circuits (maximum)
2
Glow-Wire Capable
Yes
Material - Plating Mating
Tin
CSA
LR19980
Current - Maximum per Contact
18.0A
Flammability
94V-0
Durability (mating cycles max)
25
Termination Interface: Style
Through Hole
Polarized to Mating Part
Yes
Shrouded
Fully
Number of Rows
1
Plating min - Mating
0.889µm
Temperature Range - Operating
-40° to +75°C
Duration at Max. Process Temperature (seconds)
5
Plating min - Termination
0.889µm
Polarized to PCB
Yes
Process Temperature max. C
235
Circuits (Loaded)
2
Material - Metal
Brass
PCB Locator
Yes
Material - Plating Termination
Tin
Max. Cycles at Max. Process Temperature
1
