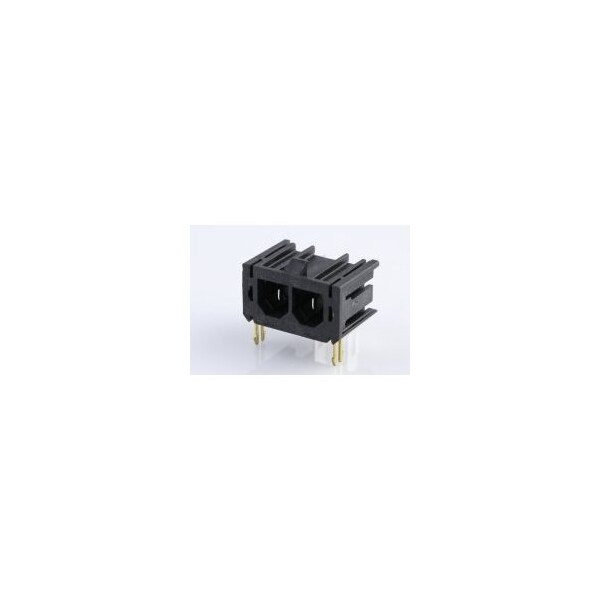

Molex Sabre 2Ckt RA V0 Hdr 125Lk LgTail 43160-7302 - main

Sabre 2Ckt RA V0 Hdr 125Lk LgTail

  • Mfr # 43160-7302

  • Zoro # G2744969

product price:  $1.45
/ea
Sold in multiples of 70 for $101.50

Key Features

Material - Resin
High Temperature Thermoplastic
Material - Metal
Brass
Lock to Mating Part
Yes
Voltage - Maximum
600V
Circuits (maximum)
2
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
43160-7302
Zoro #
G2744969
UPC #
-
Country of Origin
Mexico

Dimensions

PC Tail Length
5.33mm
PCB Thickness - Recommended
3.20mm

Details

Material - Resin
High Temperature Thermoplastic
Material - Metal
Brass
Lock to Mating Part
Yes
Voltage - Maximum
600V
Circuits (maximum)
2
PCB Locator
Yes
Current - Maximum per Contact
18.0A
Plating min - Mating
0.889µm
Orientation
Right Angle
Circuits (Loaded)
2
Keying to Mating Part
Yes
UL
E29179
Material - Plating Termination
Tin
PCB Retention
Yes
Pitch - Termination Interface
7.50mm
Flammability
94V-0
Polarized to PCB
Yes
Termination Interface: Style
Through Hole
Plating min - Termination
0.889µm
Process Temperature max. C
235
Shrouded
Fully
Pitch - Mating Interface
7.50mm
Max. Cycles at Max. Process Temperature
1
Temperature Range - Operating
-40° to +75°C
Duration at Max. Process Temperature (seconds)
5
Glow-Wire Capable
Yes
Number of Rows
1
Color - Resin
Black
Durability (mating cycles max)
25
Polarized to Mating Part
Yes
Material - Plating Mating
Tin
CSA
LR19980
