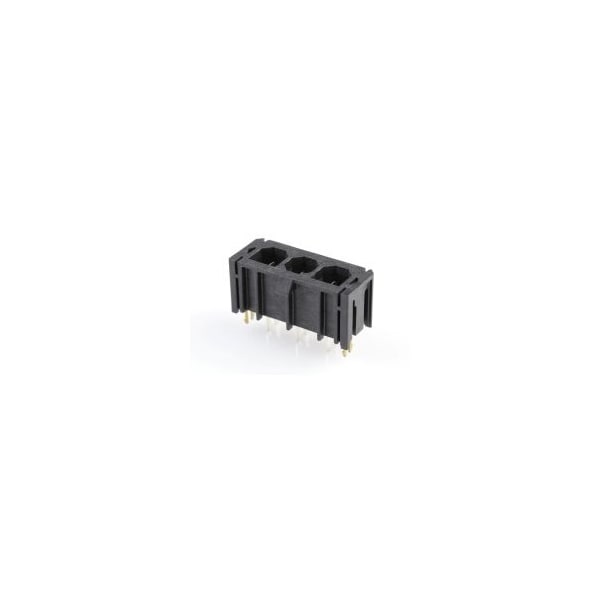

Sabre 3Ckt Ver V0 Hdr 093Lk LgTail

  • Mfr # 43160-4303

  • Zoro # G4029399

product price:
$
1.79
/ea
Sold in multiples of 65 for $116.35

Key Features

Material - Metal
Brass
Termination Interface: Style
Through Hole
Pitch - Mating Interface
7.50mm
Glow-Wire Capable
Yes
Flammability
94V-0
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
43160-4303
Zoro #
G4029399
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
2.40mm
PC Tail Length
5.33mm

Details

Material - Metal
Brass
Termination Interface: Style
Through Hole
Pitch - Mating Interface
7.50mm
Glow-Wire Capable
Yes
Flammability
94V-0
Pitch - Termination Interface
7.50mm
Circuits (Loaded)
3
Number of Rows
1
Polarized to PCB
Yes
PCB Retention
Yes
Max. Cycles at Max. Process Temperature
1
Material - Resin
High Temperature Thermoplastic
Color - Resin
Black
UL
E29179
Material - Plating Mating
Tin
Voltage - Maximum
600V
Shrouded
Fully
CSA
LR19980
PCB Locator
Yes
Plating min - Mating
0.889µm
Plating min - Termination
0.889µm
Current - Maximum per Contact
18.0A
Duration at Max. Process Temperature (seconds)
5
Durability (mating cycles max)
25
Circuits (maximum)
3
Lock to Mating Part
Yes
Material - Plating Termination
Tin
Orientation
Vertical
Process Temperature max. C
235
Polarized to Mating Part
Yes
Keying to Mating Part
Yes
Temperature Range - Operating
-40° to +75°C
