This item is Discontinued.

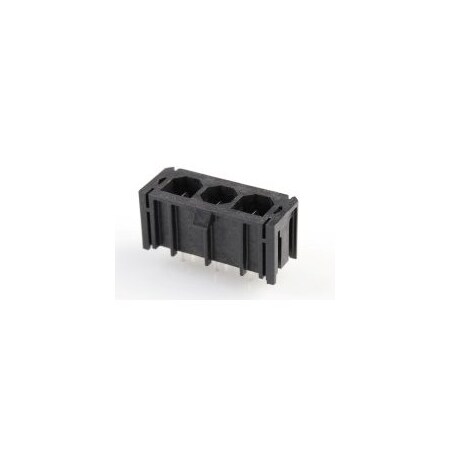

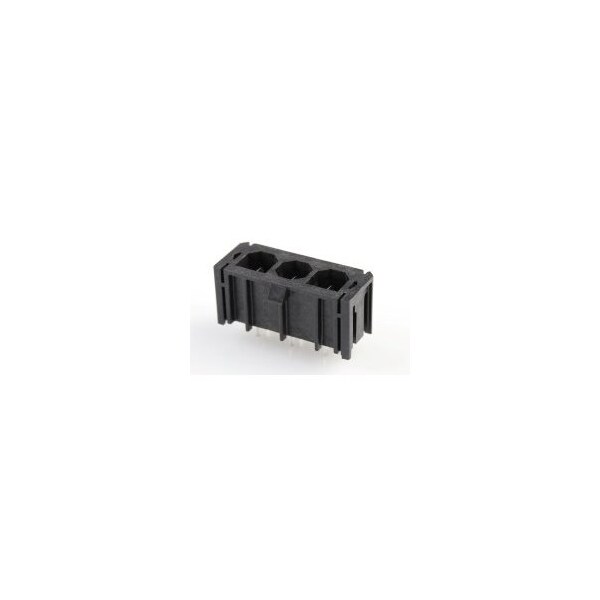

Molex Sabre 3Ckt Ver V0 Hdr w/oLk LgTail 43160-0303

Sabre 3Ckt Ver V0 Hdr w/oLk LgTail (Discontinued)

  • Mfr # 43160-0303
  • Zoro # G4046634
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
43160-0303
Zoro #
G4046634
UPC #
-
Country of Origin
Mexico

Dimensions

PC Tail Length
5.33mm
PCB Thickness - Recommended
2.40mm

Details

Material - Resin
High Temperature Thermoplastic
Flammability
94V-0
Glow-Wire Capable
Yes
Number of Rows
1
Material - Plating Termination
Tin
Plating min - Termination
0.889µm
Process Temperature max. C
235
Pitch - Mating Interface
7.50mm
UL
E29179
Material - Plating Mating
Tin
PCB Locator
Yes
Plating min - Mating
0.889µm
Lock to Mating Part
Yes
Max. Cycles at Max. Process Temperature
1
Material - Metal
Brass
Termination Interface: Style
Through Hole
Keying to Mating Part
Yes
Circuits (Loaded)
3
Orientation
Vertical
Voltage - Maximum
600V
Duration at Max. Process Temperature (seconds)
5
Color - Resin
Black
Current - Maximum per Contact
18.0A
Shrouded
Fully
Pitch - Termination Interface
7.50mm
Polarized to PCB
Yes
Durability (mating cycles max)
25
Temperature Range - Operating
-40° to +75°C
Circuits (maximum)
3
Polarized to Mating Part
Yes
CSA
LR19980
