  6. Sabre 4Ckt Ver V0 Hdr w/oLk LgTail

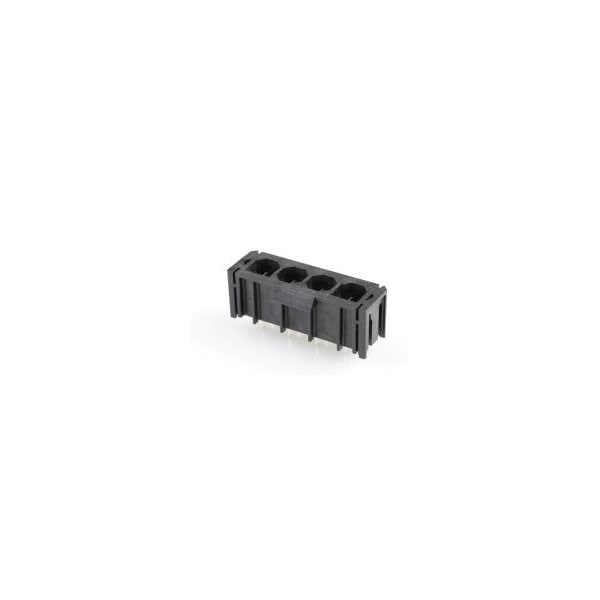

Molex Sabre 4Ckt Ver V0 Hdr w/oLk LgTail 43160-0304 - main

Sabre 4Ckt Ver V0 Hdr w/oLk LgTail

  • Mfr # 43160-0304

  • Zoro # G4047641

original price:  $1.89 , new price: $1.79 , 5 percent off
new price:  $1.79
/ea
Sold in multiples of 55 for $98.45

Key Features

Lock to Mating Part
Yes
Circuits (Loaded)
4
Plating min - Termination
0.889µm
UL
E29179
Material - Plating Mating
Tin
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
43160-0304
Zoro #
G4047641
UPC #
-
Country of Origin
Mexico

Dimensions

PC Tail Length
5.33mm
PCB Thickness - Recommended
2.40mm

Details

Lock to Mating Part
Yes
Circuits (Loaded)
4
Plating min - Termination
0.889µm
UL
E29179
Material - Plating Mating
Tin
Keying to Mating Part
Yes
Material - Plating Termination
Tin
Polarized to Mating Part
Yes
Circuits (maximum)
4
Color - Resin
Black
Orientation
Vertical
Durability (mating cycles max)
25
Glow-Wire Capable
Yes
CSA
LR19980
Material - Resin
High Temperature Thermoplastic
Termination Interface: Style
Through Hole
Plating min - Mating
0.889µm
Voltage - Maximum
600V
Pitch - Termination Interface
7.50mm
Pitch - Mating Interface
7.50mm
Process Temperature max. C
235
Polarized to PCB
Yes
Temperature Range - Operating
-40° to +75°C
Current - Maximum per Contact
18.0A
Shrouded
Fully
Flammability
94V-0
Max. Cycles at Max. Process Temperature
1
Number of Rows
1
Material - Metal
Brass
Duration at Max. Process Temperature (seconds)
5
PCB Locator
Yes
