This item is Discontinued.

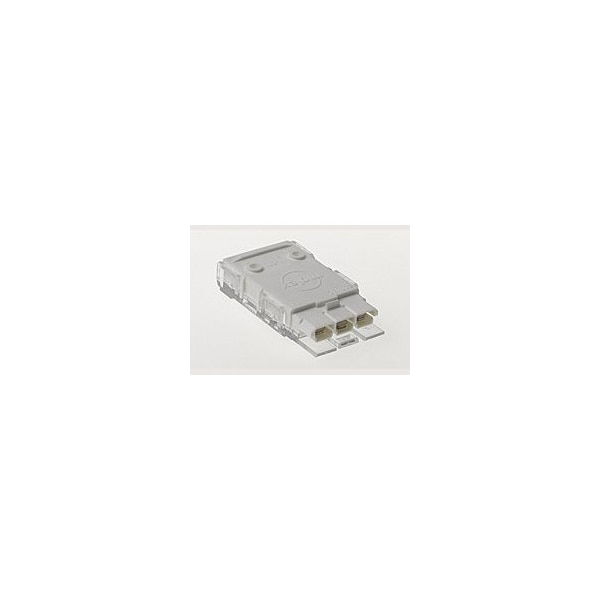

Molex Sc Power Conn 14-16 Awg Rnd Cbl 194031310

Sc Power Conn 14-16 Awg Rnd Cbl (Discontinued)

  • Mfr # 194031310
  • Zoro # G505963678
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
194031310
Zoro #
G505963678
UPC #
-
Country of Origin
United States

Dimensions

Max. Insulation Dia.
11.18 mm
Contact Plating Thickness
1.016 µm
Wire Insulation Diameter
8.64-11.18mm
Wire Size (AWG)
14

Details

Color
Clear, Natural
Maximum Voltage
600 V
Current
20 A
Minimum Operating Temperature
-35 Degrees
Maximum Operating Temperature
85 Degrees C
UL 94 Flammability Rating
5VA
Series
19403
Standards
CSA Certified; UL E182087
Material
Polycarbonate, Polyester
Max. Temp.
85°C
Max. Voltage
600V
Hole Center to Center
10.1 mm
Terminal Type
IDT or Pierce
Number of Rows
1
Number of Contacts
2
Wire Range
14 AWG
Application
Wire-to-Wire
Current Rating
20 A
Contact Finish
Tin Plated
Flammability Rating
UL 94-5VA
Terminal Finish
Tin Plated
Orientation
Vertical
Material - Resin
Polycarbonate, Polyester
Pitch - Mating Interface
10.10mm
Material - Plating Mating
Tin
Current - Maximum per Contact
20.0A
Polarized to Mating Part
Yes
Durability (mating cycles max)
250
Circuits Detail
2 Circuits with Ground
Material - Plating Termination
Tin
Component Type
Plug, Receptacle
UL
E182087
Material - Metal
High Copper Alloy
Lock to Mating Part
Yes
Flammability
94-5VA
Plating min - Mating
1.016µm
Temperature Range - Operating
-35° to +85°C
CSA
LR18689
Product Name
SCPC
