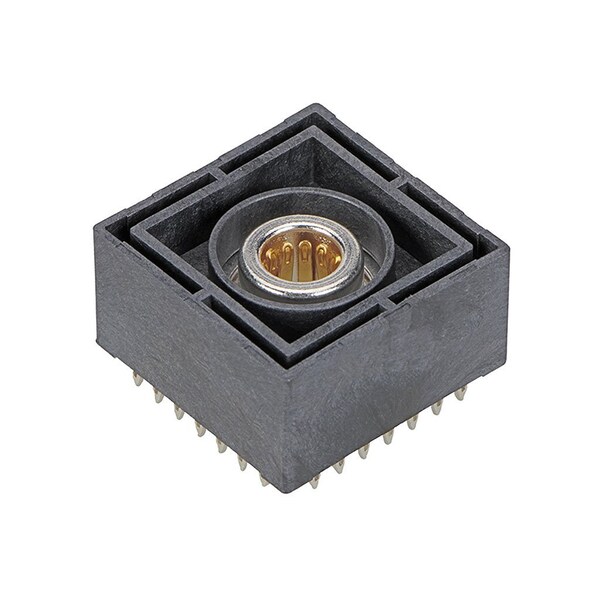

Sent 6Mm Eon Socket Float Top-Entry
Mfr # 2151130001
Zoro # G305995510
product price:Â
$
16.39
/ea
Sold in multiples of 5 for $81.95
Key Features
Application
Board-to-Board, Busbar-to-Board, Power
Height Above Board
11.84mm
CSA
LR19980
Circuits (Loaded)
1
Material - Plating Mating
Gold
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 2151130001
- Zoro #
- G305995510
- UPC #
- -
- Country of Origin
- Singapore
Dimensions
- Height Above Board
- 11.84mm
- Diameter
- 6.00mm
Details
- Application
- Board-to-Board, Busbar-to-Board, Power
- CSA
- LR19980
- Circuits (Loaded)
- 1
- Material - Plating Mating
- Gold
- Termination Interface Style
- Through Hole - Compliant Pin
- Durability (mating cycles max)
- 200
- UL
- E29179
- Series
- 215113
- PCB Retention
- None
- Current - Maximum per Contact
- 140.0A
- Material - Metal
- Copper Alloy
- Mating Orientation
- Top-entry
- Temperature Range - Operating
- -40° to +125°C
- Number of Rows
- 1
- Orientation
- Vertical
- Product Name
- Sentrality
- Polarized to PCB
- No
- Material - Plating Termination
- Silver
- Guide to Mating Part
- Yes
- Component Type
- PCB Receptacle
- Voltage - Maximum
- 600V
- Glow-Wire Capable
- No
