  11. Sl Positive Lock P-P 8Ckt 100Mm Sn

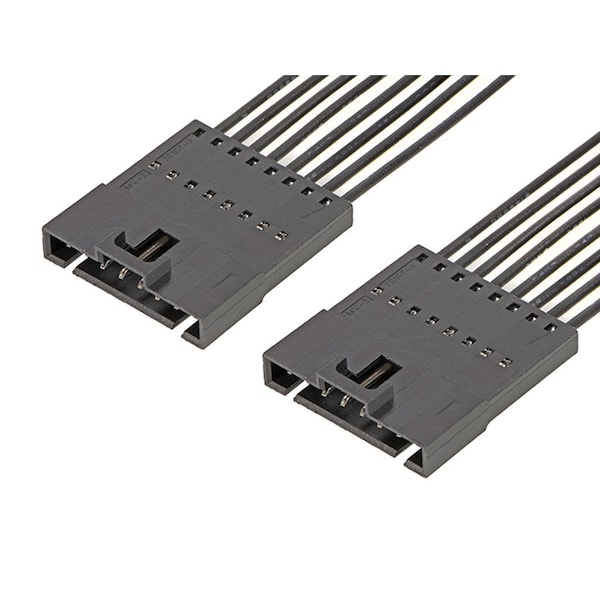

Molex Sl Positive Lock P-P 8Ckt 100Mm Sn 2162721081 - main

Sl Positive Lock P-P 8Ckt 100Mm Sn

  • Mfr # 2162721081

  • Zoro # G105789272

product price: $6.29
/ea
Sold in multiples of 15 for $94.35

Key Features

Insulation Material
Polyester Alloy
Maximum Voltage
600 V AC/DC
Current
3 A
Color
Black
Connector Type
Male-Male
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2162721081
Zoro #
G105789272
UPC #
-
Country of Origin
China

Dimensions

Length
100 mm
Max. Insulation Dia.
1.63 mm
Wire Size (AWG)
22
Cable Length
100.00mm
Wire Insulation Diameter
1.63mm max.

Details

Item
Discrete Wire Assembly
Insulation Material
Polyester Alloy
Maximum Voltage
600 V AC/DC
Current
3 A
Color
Black
Connector Type
Male-Male
Series
216272
Material
Polyester Alloy
Terminal Type
Crimp or Compression
Number of Contacts
8
Wire Range
22 AWG
Type
Discrete Wire Assembly
Contact Finish
Tin Plated
Number of Rows
1
Current Rating
3 A
Application
Signal, Wire-to-Wire
Max. Voltage
600V AC/DC
Hole Center to Center
2.54 mm
Terminal Finish
Tin Plated
Product Name
SL
Material - Resin
Polyester Alloy
Material - Plating Termination
Tin
Current - Maximum per Contact
3.0A
Material - Plating Mating
Tin
Wire/Cable Type
UL 11028
Assembly Configuration
Dual Ended Connectors
Pitch - Mating Interface
2.54mm
Single Ended
No
Material - Metal
Phosphor Bronze
Circuits (Loaded)
8
Connector to Connector
SL-to-SL
Lock to Mating Part
Yes
Overmolded
No
