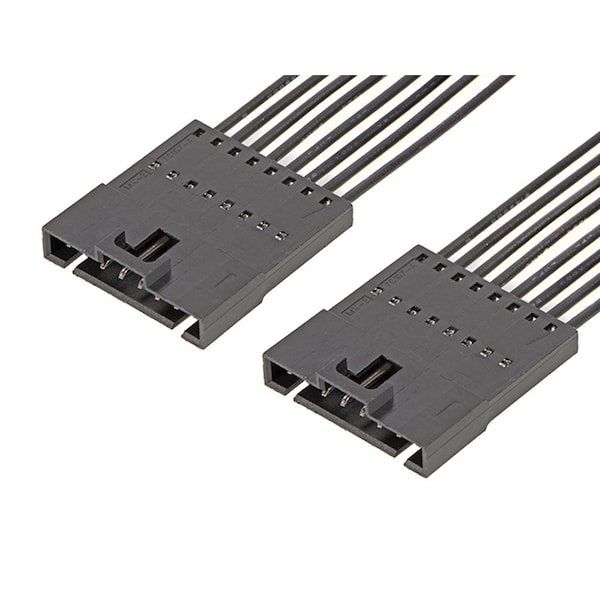

Molex Sl Positive Lock P-P 8Ckt 300Mm Sn 2162721083 - main

Sl Positive Lock P-P 8Ckt 300Mm Sn

  • Mfr # 2162721083

  • Zoro # G205789929

product price:  $7.69
/ea
Sold in multiples of 15 for $115.35

Key Features

Insulation Material
Polyester Alloy
Maximum Voltage
600 V
Current
3 A
Series
216272
Material
Polyester Alloy
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2162721083
Zoro #
G205789929
UPC #
-
Country of Origin
China

Dimensions

Length
300 mm
Max. Insulation Dia.
1.63 mm
Wire Insulation Diameter
1.63mm max.
Cable Length
300.00mm
Wire Size (AWG)
22

Details

Item
Discrete Wire Assembly
Insulation Material
Polyester Alloy
Maximum Voltage
600 V
Current
3 A
Series
216272
Material
Polyester Alloy
Connector Type
Male-Male
Color
Black
Current Rating
3 A
Number of Contacts
8
Number of Rows
1
Max. Voltage
600V AC/DC
Contact Finish
Tin Plated
Type
Discrete Wire Assembly
Terminal Type
Crimp or Compression
Hole Center to Center
2.54 mm
Application
Signal, Wire-to-Wire
Wire Range
22 AWG
Terminal Finish
Tin Plated
Material - Plating Termination
Tin
Circuits (Loaded)
8
Material - Metal
Phosphor Bronze
Material - Resin
Polyester Alloy
Wire/Cable Type
UL 11028
Pitch - Mating Interface
2.54mm
Assembly Configuration
Dual Ended Connectors
Single Ended
No
Product Name
SL
Overmolded
No
Material - Plating Mating
Tin
Lock to Mating Part
Yes
Connector to Connector
SL-to-SL
Current - Maximum per Contact
3.0A
