Shop MOLEX

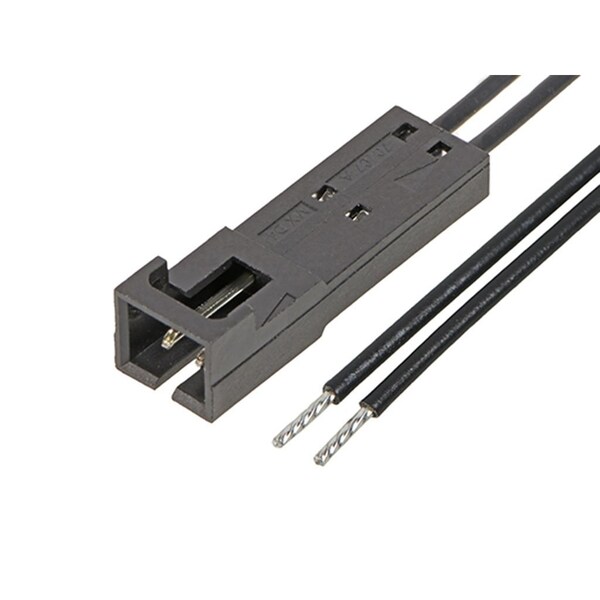

Sl Positive Lock P-S 2Ckt 50Mm Sn

  • Mfr # 2162731020

  • Zoro # G405789835

product price:  $1.79
/ea
Sold in multiples of 60 for $107.40

Key Features

Insulation Material
Polyester Alloy
Maximum Voltage
600 V AC/DC
Current
3 A
Color
Black
Connector Type
Male-Pigtail
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2162731020
Zoro #
G405789835
UPC #
-
Country of Origin
China

Dimensions

Length
50 mm
Max. Insulation Dia.
1.63 mm
Cable Length
50.00mm
Wire Size (AWG)
22
Wire Insulation Diameter
1.63mm max.

Details

Item
Discrete Wire Assembly
Insulation Material
Polyester Alloy
Maximum Voltage
600 V AC/DC
Current
3 A
Color
Black
Connector Type
Male-Pigtail
Series
216273
Material
Polyester Alloy
Terminal Type
Crimp or Compression
Application
Signal, Wire-to-Wire
Type
Discrete Wire Assembly
Number of Contacts
2
Contact Finish
Tin Plated
Wire Range
22 AWG
Number of Rows
1
Features
Single Ended
Max. Voltage
600V AC/DC
Current Rating
3 A
Hole Center to Center
2.54 mm
Terminal Finish
Tin Plated
Wire/Cable Type
UL 11028
Material - Metal
Phosphor Bronze
Product Name
SL
Current - Maximum per Contact
3.0A
Connector to Connector
SL-to-Pigtail
Material - Plating Termination
Tin
Assembly Configuration
Single Ended Connector
Single Ended
Yes
Material - Resin
Polyester Alloy
Pitch - Mating Interface
2.54mm
Circuits (Loaded)
2
Material - Plating Mating
Tin
Overmolded
No
Lock to Mating Part
Yes
