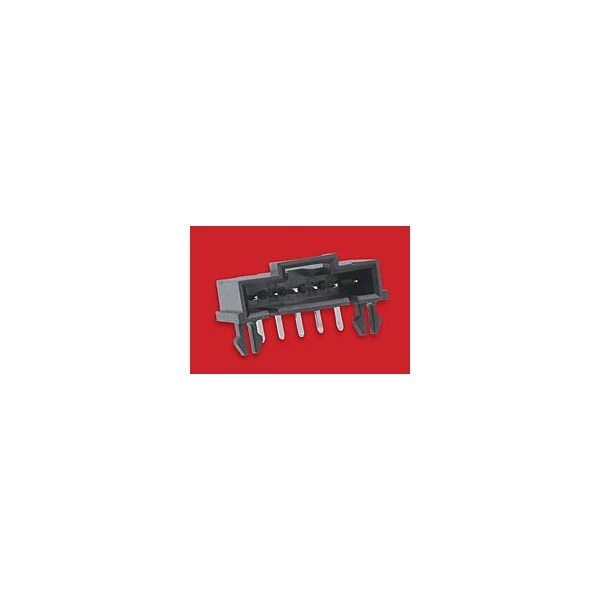

Molex SL R/A Latch Hdr /Split Pg 15 SAu 5Ckt 70551-0039 - main

SL R/A Latch Hdr /Split Pg 15 SAu 5Ckt

  • Mfr # 70551-0039

  • Zoro # G7769584

product price:  $1.79
/ea
Sold in multiples of 64 for $114.56

Key Features

Temperature Range - Operating
-40° to +105°C
Material - Metal
Brass, Phosphor Bronze
Voltage - Maximum
250V
PCB Thickness - Recommended
1.60mm
Shrouded
Fully
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
70551-0039
Zoro #
G7769584
UPC #
-
Country of Origin
United States

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
3.30mm

Details

Temperature Range - Operating
-40° to +105°C
Material - Metal
Brass, Phosphor Bronze
Voltage - Maximum
250V
Shrouded
Fully
Pitch - Mating Interface
2.54mm
Circuits (Loaded)
5
Durability (mating cycles max)
50
Flammability
94V-0
Termination Interface: Style
Through Hole
Number of Rows
1
UL
E29179
Orientation
Right Angle
Polarized to Mating Part
Yes
Lock to Mating Part
Yes
PCB Locator
Yes
Color - Resin
Black
Material - Plating Mating
Gold
PCB Retention
Yes
Plating min - Mating
0.381µm
Plating min - Termination
1.905µm
Material - Plating Termination
Tin
Current - Maximum per Contact
3.0A
Circuits (maximum)
5
Material - Resin
High Temperature Thermoplastic
CSA
LR19980
