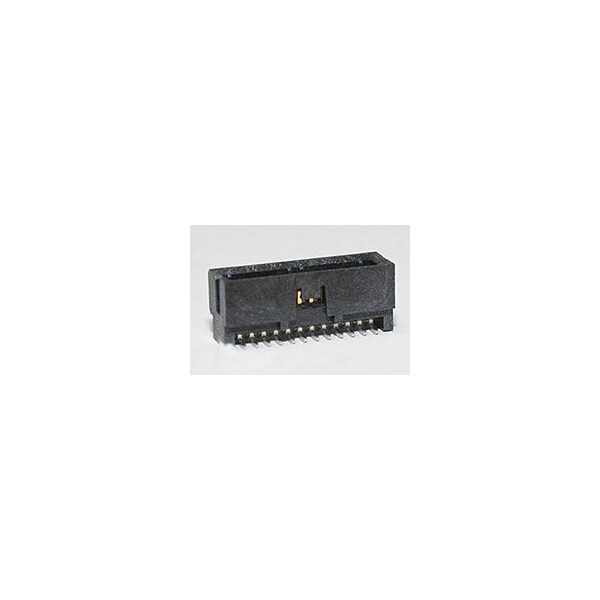

Slimgrid Shrd Hdr Vt/oCap 0.05AuLF 12Ckt

  • Mfr # 200989-0012

  • Zoro # G4034953


original price: $2.29
13% off
new price: $1.99
/ea
Sold in multiples of 55 for $109.45

Key Features

Voltage - Maximum
125V AC
Circuits (Loaded)
12
Max. Cycles at Max. Process Temperature
1
Temperature Range - Operating
-55° to +105°C
Lock to Mating Part
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
200989-0012
Zoro #
G4034953
UPC #
-
Country of Origin
Singapore

Details

Voltage - Maximum
125V AC
Circuits (Loaded)
12
Max. Cycles at Max. Process Temperature
1
Temperature Range - Operating
-55° to +105°C
Lock to Mating Part
Yes
Material - Metal
Copper Alloy
Material - Resin
Liquid Crystal Polymer
Orientation
Vertical
Process Temperature max. C
260
Plating min - Termination
2.000µm
Pitch - Mating Interface
1.27mm
Polarized to Mating Part
Yes
UL
E29179
Guide to Mating Part
Yes
Circuits (maximum)
12
Current - Maximum per Contact
1.4A
CSA
LR19980
Material - Plating Mating
Gold
Number of Rows
2
Plating min - Mating
0.051µm
Durability (mating cycles max)
500
Pitch - Termination Interface
1.27mm
Color - Resin
Black
Material - Plating Termination
Matte Tin
Duration at Max. Process Temperature (seconds)
10
Flammability
94V-0
Shrouded
Fully
Termination Interface: Style
Surface Mount
