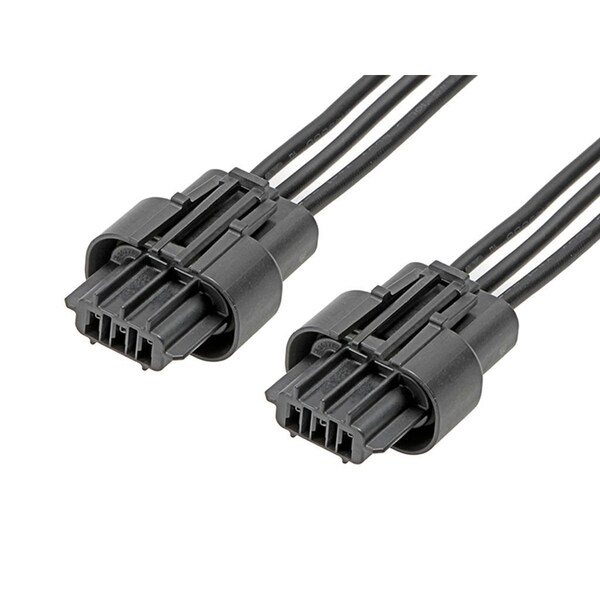

Squba 3.6 Female-To-Squba 3.6 Female Off-The-Shelf (Ots) Cable Assembly

  • Mfr # 2166201031
  • Zoro # G105948662
product price:
$
10.15
/ea
Sold in multiples of 10 for $101.50

Key Features

Color
Black
Series
216620
Max. Voltage
600V
Application
Power, Signal, Wire-to-Wire
Length
150 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
2166201031
Zoro #
G105948662
UPC #
-
Country of Origin
China
Color
Black
Series
216620
Max. Voltage
600V
Application
Power, Signal, Wire-to-Wire
Material
Nylon
Connector Type
Female-Female
Number of Contacts
3
Wire Range
16 AWG
Number of Rows
1
Type
Discrete Wire Assembly, Sealed Assembly
Hole Center to Center
3.6 mm
Current Rating
14 A
Contact Finish
Matte Tin Plated
Terminal Type
Crimp or Compression
Terminal Finish
Matte Tin Plated
Overmolded
No
Material - Metal
Copper Alloy
Lock to Mating Part
Yes
Circuits (Loaded)
3
Wire/Cable Type
UL 11028
Plating min - Mating
2.540µm
Product Name
Squba
Single Ended
No
Connector to Connector
Squba-to-Squba
Material - Plating Mating
Matte Tin
Pitch - Mating Interface
3.60mm
Current - Maximum per Contact
14.0A
Material - Resin
Nylon
Material - Plating Termination
Matte Tin
Assembly Configuration
Dual Ended Connectors

Dimensions

Length
150 mm
Max. Insulation Dia.
2.4 mm
Contact Plating Thickness
2.54 µm
Wire Size (AWG)
16
Cable Length
150.00mm
Wire Insulation Diameter
1.90mm-2.40mm
