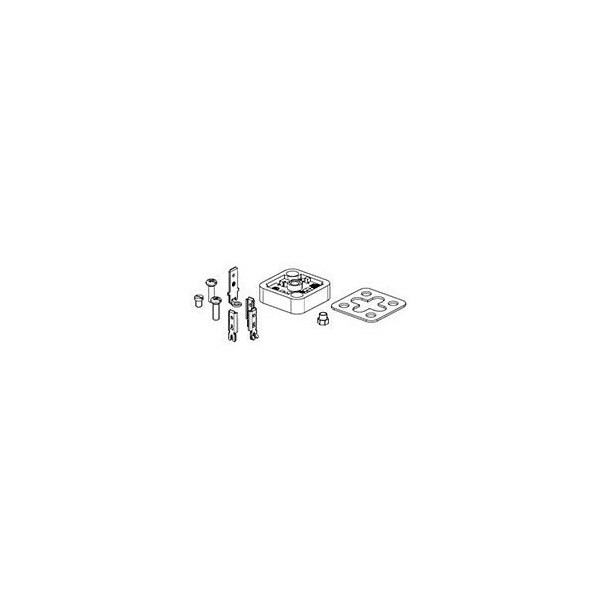

STD. BASE 3 POLE+EARTH FLAT
Mfr # 1210120019
Zoro # G700442770
product price: $2.99
/eaSold in multiples of 31 for $92.69
Key Features
Type
Field Attachable Connector
Maximum Voltage
250 V AC/300 V DC
Minimum Operating Temperature
-40 Degrees C
Maximum Operating Temperature
90 Degrees C
Series
121012
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
1210120019
Zoro #
G700442770
UPC #
883906278069
Country of Origin
Unknown
Details
Item
Field Attachable Connector
Type
Field Attachable Connector
Maximum Voltage
250 V AC/300 V DC
Minimum Operating Temperature
-40 Degrees C
Maximum Operating Temperature
90 Degrees C
Series
121012
Standards
UL E152210
IP Rating
IP65, IP67
Material - Connector Body
Polypropylene
Poles
3
Form
A - 18mm
Voltage - Maximum
250V AC / 300V DC
Material - Plating Mating
Silver
Temperature Range - Operating
-40°C to +90°C
Current - Maximum per Contact
16.0A
Orientation
Straight
Material - Contact
Brass
Keyway
None
Product Name
mPm
Diagnostics / LEDs
No
Pitch - Mating Interface
18.00mm
