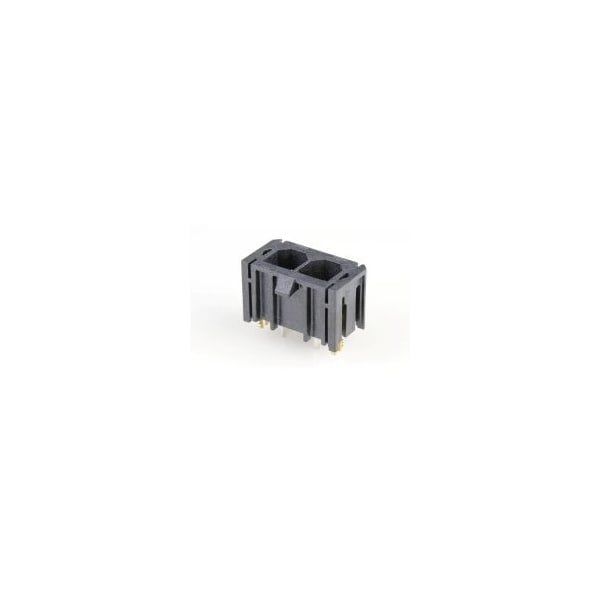

Super-Sabre Vert Hdr Assy 2ckt FgrPrf

  • Mfr # 172042-0202

  • Zoro # G2745048


product price: $2.15
/ea
Sold in multiples of 46 for $98.90

Key Features

Temperature Range - Operating
-40° to +125°C
Voltage - Maximum
600V AC (RMS)
Color - Resin
Black
Flammability
94V-0
Material - Plating Mating
Silver
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
172042-0202
Zoro #
G2745048
UPC #
-
Country of Origin
Mexico

Dimensions

PC Tail Length
3.81mm

Details

Temperature Range - Operating
-40° to +125°C
Voltage - Maximum
600V AC (RMS)
Color - Resin
Black
Flammability
94V-0
Material - Plating Mating
Silver
Surface Mount Compatible (SMC)
Yes
Material - Resin
High Temperature Thermoplastic
Circuits (Loaded)
2
PCB Retention
Yes
Glow-Wire Capable
Yes
Pitch - Mating Interface
7.50mm
Duration at Max. Process Temperature (seconds)
30
Lock to Mating Part
Yes
Current - Maximum per Contact
30.0A per blade
Termination Interface: Style
Through Hole
Plating min - Mating
0.025µm
Process Temperature max. C
260
Polarized to Mating Part
Yes
Max. Cycles at Max. Process Temperature
3
UL
E29179
Material - Metal
Copper
Material - Plating Termination
Matte Tin, Nickel
Plating min - Termination
0.025µm
Circuits (maximum)
2
CSA
LR19980
Orientation
Vertical
Number of Rows
1
Durability (mating cycles max)
25
