  9. Telecom And Datacom Connector, 32 Contact(S), Female, Right Angle, Solder Terminal, Locking, Jack

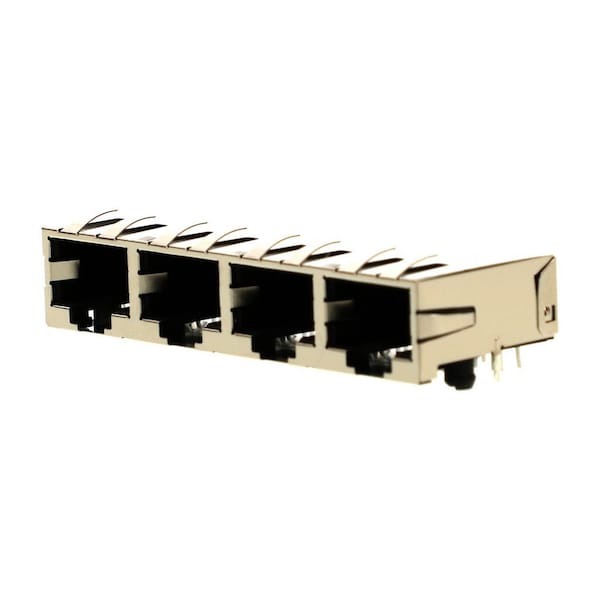

Molex Telecom And Datacom Connector, 32 Contact(S), Female, Right Angle, Solder Terminal, Locking, Jack 445600014 - main

Telecom And Datacom Connector, 32 Contact(S), Female, Right Angle, Solder Terminal, Locking, Jack

  • Mfr # 445600014

  • Zoro # G605930358

product price: $25.49
/ea
Sold in multiples of 5 for $127.45

Key Features

Series
44560
Magnetic
No
PCB Thickness - Recommended
1.60mm
UL
E107635
Component Type
PCB Jack
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
445600014
Zoro #
G605930358
UPC #
-
Country of Origin
United States

Dimensions

PCB Thickness - Recommended
1.60mm
Jack Height
11.23mm

Details

Series
44560
Magnetic
No
UL
E107635
Component Type
PCB Jack
Product Name
Modular Jack 8/8,RJ45
Current - Maximum per Contact
1.5A
Material - Metal
Brass, Phosphor Bronze
Temperature Range - Operating
-40° to +85°C
Shielded
Yes
Plating min - Mating
1.270µm
Positions / Loaded Contacts
8/8
Material - Plating Termination
Tin
Pitch - Mating Interface
1.02mm
Material - Resin
High Temperature Thermoplastic
Inverted / Top Latch
No
Max-Duration
5
Performance Category
5, 5e
Termination Interface Style
Through Hole
PCB Retention
Yes
Durability (mating cycles max)
500
CSA
LR19980
Flammability
94V-0
Max-Temp
260
Orientation
Right Angle (Side Entry)
Grounding to Panel
Yes
Max-Cycle
1
Voltage - Maximum
150V
Color - Resin
Black
Material - Plating Mating
Gold
Port Configuration
1x4
