  11. Telecom And Datacom Connector, 40 Contact(S), Female, Right Angle, Press Fit Terminal, Receptacle
This item is Discontinued.

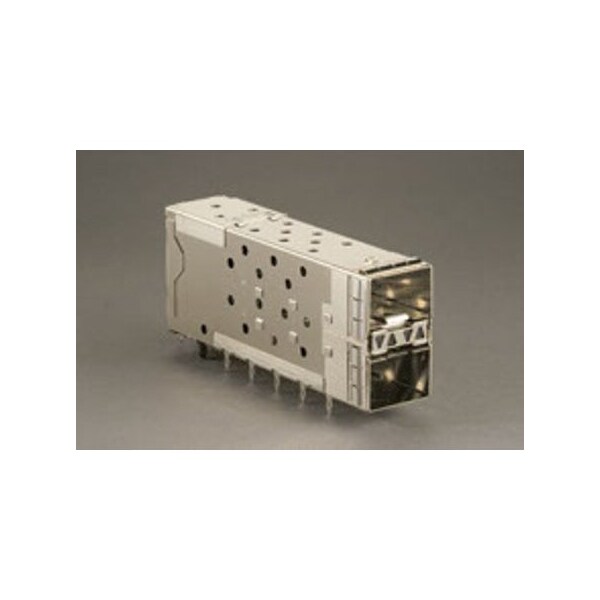

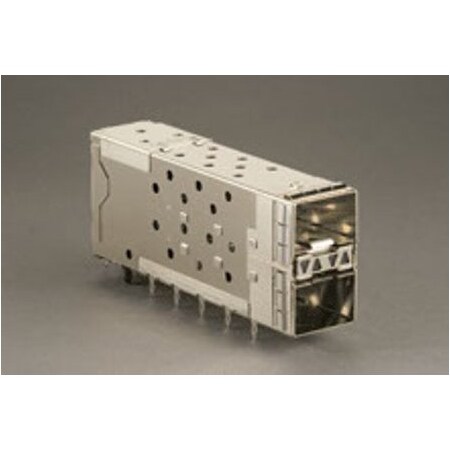

Molex Telecom And Datacom Connector, 40 Contact(S), Female, Right Angle, Press Fit Terminal, Receptacle 760445003

Telecom And Datacom Connector, 40 Contact(S), Female, Right Angle, Press Fit Terminal, Receptacle (Discontinued)

  • Mfr # 760445003
  • Zoro # G605951216
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
760445003
Zoro #
G605951216
UPC #
-
Country of Origin
China

Dimensions

Contact Plating Thickness
0.762 µm
PC Tail Length
2.07mm
PCB Thickness - Recommended
1.57mm

Details

Connector Type
Female
Number of Contacts
40
Max. Temp.
85°C
Max. Voltage
120V AC/DC
Application
Module-to-Board
Series
76044
Standards
CSA Certified; UL E29179
Material
High Temperature Thermoplastic, Polycarbonate
Number of Ports
2
Hole Center to Center
0.8 mm
Terminal Type
Through Hole - Compliant Pin
Color
Black, Clear
Shielded
Yes
Terminal Finish
Tin Plated
Contact Finish
Gold Plated
Flammability Rating
UL 94V-0
Current Rating
0.5 A
Number of Rows
2
Grounding to Panel
None
Pitch - Mating Interface
0.80mm
Color - Resin
Black, Clear (Blue Tint)
Shield Type
EMI Gasket
Product Name
SFP Plus,SFP+
Polarized to PCB
Yes
Circuits (Loaded)
40
Lock to Mating Part
Yes
Waterproof / Dustproof
No
Keying to Mating Part
None
Current - Maximum per Contact
0.5A
Material - Plating Mating
Gold
Temperature Range - Operating
-40° to +85°C
Orientation
Right Angle
Polarized to Mating Part
Yes
Durability (mating cycles max)
100
PCB Retention
Yes
Voltage - Maximum
120V AC (RMS)/DC
Plating min - Mating
0.762µm
CSA
LR19980
Material - Plating Termination
Tin
Material - Resin
High Temperature Thermoplastic, Polycarbonate
Material - Metal
Brass, Phosphor Bronze
Component Type
Receptacle
PCB Locator
Yes
Flammability
94V-0
UL
E29179
