  11. TEN60 RA RECPT ASSY

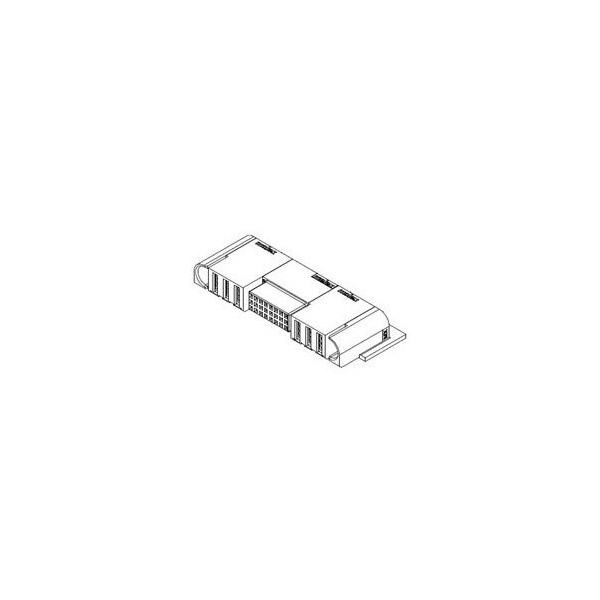

Molex TEN60 RA RECPT ASSY 46436-3007 - main

TEN60 RA RECPT ASSY

  • Mfr # 46436-3007

  • Zoro # G4031234

product price: $8.15
/ea
Sold in multiples of 10 for $81.50

Key Features

CSA
LR19980
PCB Thickness - Recommended
1.58mm
Number of Rows
1
Material - Plating Mating
Gold
Plating min - Mating
0.127µm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
46436-3007
Zoro #
G4031234
UPC #
-
Country of Origin
Indonesia

Dimensions

PCB Thickness - Recommended
1.58mm

Details

CSA
LR19980
Number of Rows
1
Material - Plating Mating
Gold
Plating min - Mating
0.127µm
Plating min - Termination
2.540µm
Durability (mating cycles max)
200
Color - Resin
Black
Temperature Range - Operating
-40° to +105°C
UL
E29179
Circuits (Loaded)
30
Flammability
94V-0
Material - Plating Termination
Tin
Guide to Mating Part
Yes
Material - Resin
High Temperature Thermoplastic
Voltage - Maximum
600V AC / 250V DC
Polarized to Mating Part
Yes
Termination Interface: Style
Through Hole
(p)ower-(s)ignal Configuration
6p - 24s
Current - Maximum per Contact
2.5A, 55.0A
Polarized to PCB
Yes
Orientation
Right Angle
Pitch - Mating Interface
2.54mm, 5.50mm
Material - Metal
Copper
Circuits (maximum)
30
