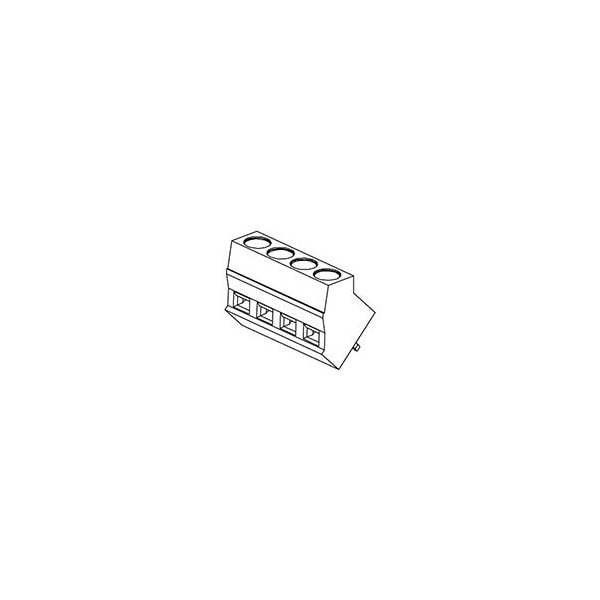

Terminal Block, 10 A, 300 V, 14 AWG
Mfr # 395434308
Zoro # G905798320
product price: $2.45
/eaSold in multiples of 1440 for $3,528.00
Key Features
Current
10 A
Maximum Voltage
300 V
For Minimum Wire Size
22 AWG
For Maximum Wire Size
14 AWG
Standards
UL E48521
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
395434308
Zoro #
G905798320
UPC #
-
Country of Origin
Switzerland
Dimensions
For Minimum Wire Size
22 AWG
For Maximum Wire Size
14 AWG
PC Tail Length
4.40mm
PCB Thickness - Recommended
3.40mm
Details
Item
Terminal Block
Current
10 A
Maximum Voltage
300 V
Standards
UL E48521
Type
Euro Block
Temperature Range - Operating
-40° to +105°C
Circuits (Loaded)
8
Process Temperature max. C
260
Lock to Mating Part
None
Max. Cycles at Max. Process Temperature
135
Stackable
No
Panel Mount
No
Entry Angle
45° Angle
Pitch - Mating Interface
5.00mm
Number of Rows
1
Duration at Max. Process Temperature (seconds)
5
Orientation
45° Angle
Series
39543
Component Type
One Piece
Product Name
ESE,Eurostyle Fixed Mount
