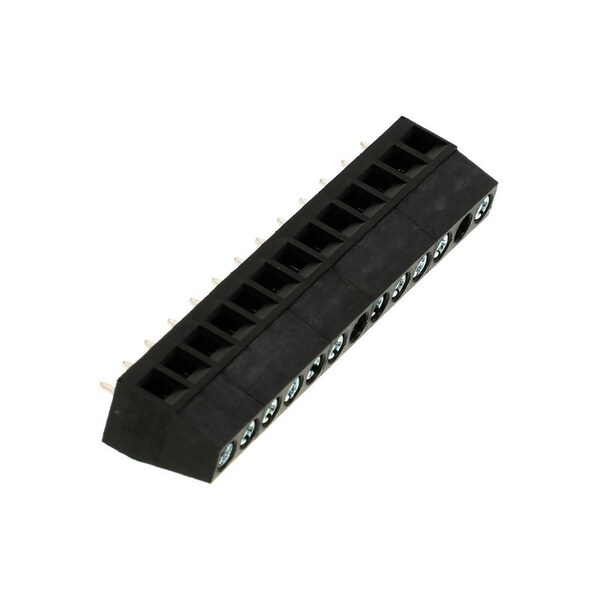

Terminal Block, 15 A, 300 V, 12 AWG
Mfr # 395443013
Zoro # G505798157
product price: $4.19
/eaSold in multiples of 25 for $104.75
Key Features
Current
15 A
Maximum Voltage
300 V
For Minimum Wire Size
22 AWG
For Maximum Wire Size
12 AWG
Standards
UL E48521
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
395443013
Zoro #
G505798157
UPC #
-
Country of Origin
China
Dimensions
For Minimum Wire Size
22 AWG
For Maximum Wire Size
12 AWG
PCB Thickness - Recommended
2.00mm
PC Tail Length
3.00mm
Details
Item
Terminal Block
Current
15 A
Maximum Voltage
300 V
Standards
UL E48521
Type
Euro Block
Max. Cycles at Max. Process Temperature
135
Stackable
No
Lock to Mating Part
None
Temperature Range - Operating
-40° to +105°C
Pitch - Mating Interface
5.08mm
Duration at Max. Process Temperature (seconds)
5
Orientation
Vertical
Circuits (Loaded)
13
Number of Rows
1
Entry Angle
Horizontal
Panel Mount
No
Process Temperature max. C
260
Series
39544
Product Name
ESE,Eurostyle Fixed Mount
Component Type
One Piece
