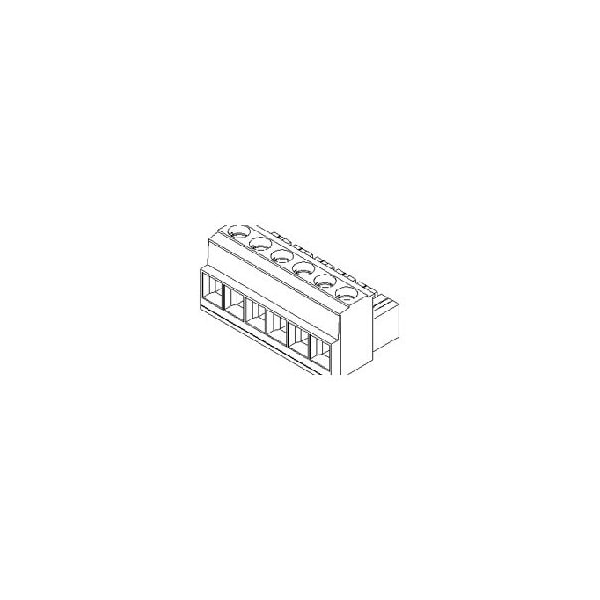

Terminal Block, 85 A, 600 V, 3 AWG
- Mfr # 394210005
- Zoro # G505919224
product price:Â
$
40.99
/ea
Sold in multiples of 2 for
$81.98
Key Features
Current
85.0 A
Maximum Voltage
600 V
For Minimum Wire Size
14 AWG
For Maximum Wire Size
3 AWG
Type
Euro Block
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 394210005
- Zoro #
- G505919224
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- For Minimum Wire Size
- 14 AWG
- For Maximum Wire Size
- 3 AWG
Details
- Item
- Terminal Block
- Current
- 85.0 A
- Maximum Voltage
- 600 V
- Type
- Euro Block
- Panel Mount
- No
- Orientation
- Horizontal
- Lock to Mating Part
- Yes
- Material - Metal
- Brass
- Number of Rows
- 1
- Pitch - Mating Interface
- 12.00mm
- Material - Plating Termination
- Tin
- Polarized to Mating Part
- Yes
- Material - Plating Mating
- Tin
- Circuits (Loaded)
- 5
- Plating min - Mating
- 3.810µm
- Stackable
- No
- Temperature Range - Operating
- 130°C
- Material - Resin
- Polyester
- Entry Angle
- 180° Angle
- Series
- 39421
- Product Name
- EuroMax Pluggable
- Component Type
- Plug
