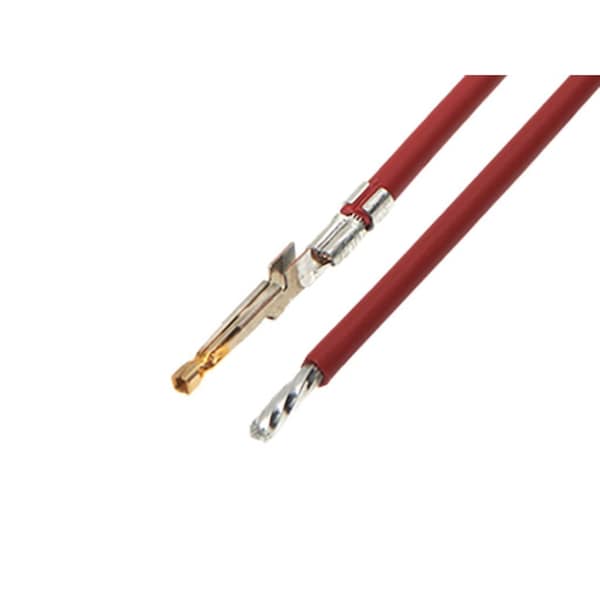

Ultra-Fit F-S 300Mm 16 Awg Leads Rd Sn
Mfr # 2174712124
Zoro # G005790347
product price:Â
$
0.94
/ea
Sold in multiples of 111 for $104.34
Key Features
Maximum Voltage
600 V
Current
12 A
Series
217471
Color
Red
Type
Ultra-Fit Crimp Terminals
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 2174712124
- Zoro #
- G005790347
- UPC #
- -
- Country of Origin
- India
Dimensions
- Wire Insulation Diameter
- 2.03-2.39mm
- Wire Size (AWG)
- 16
- Cable Length
- 300.00mm
Details
- Item
- Ultra-Fit
- Maximum Voltage
- 600 V
- Current
- 12 A
- Series
- 217471
- Color
- Red
- Type
- Ultra-Fit Crimp Terminals
- Application
- Power, Wire-to-Board
- Product Name
- Ultra-Fit
- Termination Interface Style
- Crimp or Compression
- Single Ended
- Yes
- Material - Metal
- High Conductivity Copper
- Voltage - Maximum
- 600V AC (RMS)/DC
- Color - Resin
- Red
- Wire/Cable Type
- UL 1061
- Gender
- Female-Pigtail
- Circuits (Loaded)
- 1
- Current - Maximum per Contact
- 12.0A
- Assembly Configuration
- Pre-crimped Lead Only
- Material - Plating Mating
- Tin
- Connector to Connector
- Ultra-Fit Crimp Terminals
- Termination Style
- Crimp or Compression
