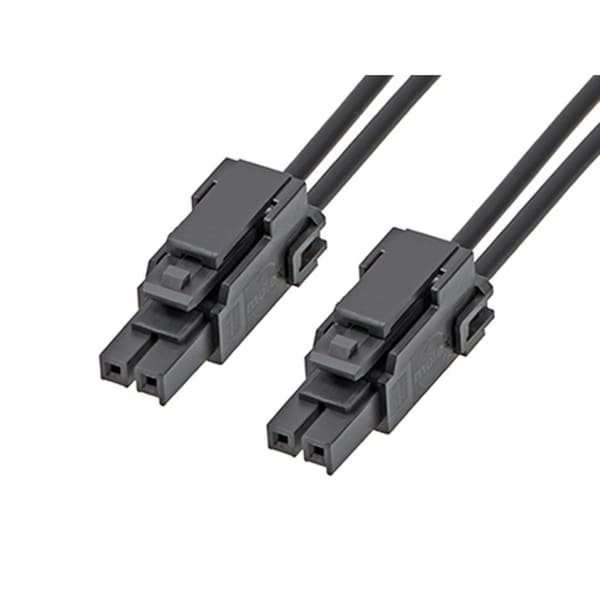

Ultra-Fit Sr R-R 2Ckt 150Mm Disc Sn

  • Mfr # 2174651021

  • Zoro # G405926162


product price: $3.39
/ea
Sold in multiples of 23 for $77.97

Key Features

Cable Length
150.00mm
Application
Power, Wire-to-Board
Type
Discrete Wire Assembly
Series
217465
Wire/Cable Type
UL 1061
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2174651021
Zoro #
G405926162
UPC #
-
Country of Origin
India

Dimensions

Cable Length
150.00mm
Wire Insulation Diameter
2.03-2.39mm
Wire Size AWG
16

Details

Application
Power, Wire-to-Board
Type
Discrete Wire Assembly
Series
217465
Wire/Cable Type
UL 1061
Plating min - Termination
1.524µm
Voltage - Maximum
600V AC (RMS)/DC
Gender
Female-Female
Number of Rows
1
Plating min - Mating
1.524µm
Color - Resin
Black
Material - Metal
High Conductivity Copper
Current - Maximum per Contact
14.0A
Material - Plating Mating
Tin
Termination Interface: Style
Crimp or Compression
Material - Resin
Nylon
Circuits (Loaded)
2
Lock to Mating Part
Yes
Pitch - Mating Interface
3.50mm
Material - Plating Termination
Tin
Assembly Configuration
Dual Ended Connectors
Overmolded
No
Connector to Connector
Ultra-Fit-to-Ultra-Fit
Single Ended
No
Product Name
Ultra-Fit
