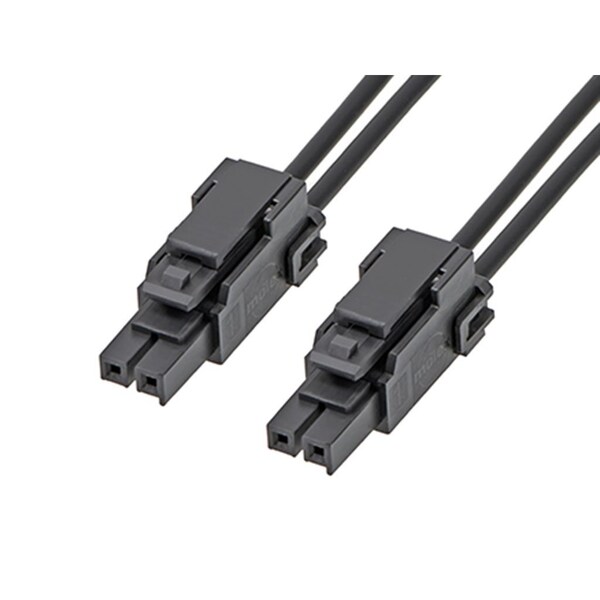

Ultra-Fit Sr R-R 2Ckt 300Mm Disc Sn
- Mfr # 2174651022
- Zoro # G205926096
product price:Â
$
4.89
/ea
Sold in multiples of 20 for
$97.80
Key Features
Cable Length
300.00mm
Application
Power, Wire-to-Board
Series
217465
Type
Discrete Wire Assembly
Plating min - Termination
1.524µm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 2174651022
- Zoro #
- G205926096
- UPC #
- -
- Country of Origin
- India
- Application
- Power, Wire-to-Board
- Series
- 217465
- Type
- Discrete Wire Assembly
- Plating min - Termination
- 1.524µm
- Lock to Mating Part
- Yes
- Plating min - Mating
- 1.524µm
- Color - Resin
- Black
- Termination Interface: Style
- Crimp or Compression
- Wire/Cable Type
- UL 1061
- Voltage - Maximum
- 600V AC (RMS)/DC
- Material - Metal
- High Conductivity Copper
- Material - Resin
- Nylon
- Circuits (Loaded)
- 2
- Pitch - Mating Interface
- 3.50mm
- Number of Rows
- 1
- Material - Plating Termination
- Tin
- Material - Plating Mating
- Tin
- Current - Maximum per Contact
- 14.0A
- Gender
- Female-Female
- Connector to Connector
- Ultra-Fit-to-Ultra-Fit
- Overmolded
- No
- Assembly Configuration
- Dual Ended Connectors
- Single Ended
- No
- Product Name
- Ultra-Fit
Dimensions
- Cable Length
- 300.00mm
- Wire Insulation Diameter
- 2.03-2.39mm
- Wire Size AWG
- 16
