Shop MOLEX

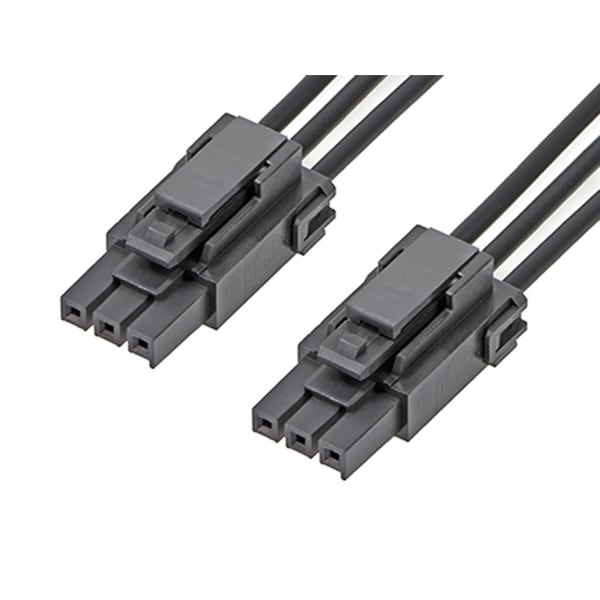

Ultra-Fit Sr R-R 3Ckt 300Mm Disc Sn

  • Mfr # 2174651032

  • Zoro # G105926202

product price:
$
5.79
/ea
Sold in multiples of 20 for $115.80

Key Features

Cable Length
300.00mm
Application
Power, Wire-to-Board
Series
217465
Type
Discrete Wire Assembly
Termination Interface: Style
Crimp or Compression
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2174651032
Zoro #
G105926202
UPC #
-
Country of Origin
India

Dimensions

Cable Length
300.00mm
Wire Insulation Diameter
2.03-2.39mm
Wire Size AWG
16

Details

Application
Power, Wire-to-Board
Series
217465
Type
Discrete Wire Assembly
Termination Interface: Style
Crimp or Compression
Current - Maximum per Contact
14.0A
Plating min - Termination
1.524µm
Material - Plating Mating
Tin
Circuits (Loaded)
3
Wire/Cable Type
UL 1061
Color - Resin
Black
Voltage - Maximum
600V AC (RMS)/DC
Pitch - Mating Interface
3.50mm
Material - Metal
High Conductivity Copper
Material - Resin
Nylon
Lock to Mating Part
Yes
Number of Rows
1
Gender
Female-Female
Plating min - Mating
1.524µm
Material - Plating Termination
Tin
Overmolded
No
Connector to Connector
Ultra-Fit-to-Ultra-Fit
Assembly Configuration
Dual Ended Connectors
Single Ended
No
Product Name
Ultra-Fit
