This item is Discontinued.

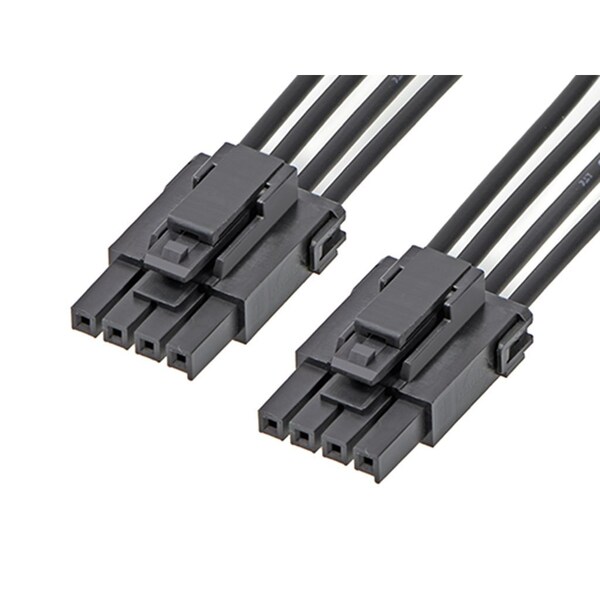

Molex Ultra-Fit Sr R-R 4Ckt 600Mm Disc Sn 2174651043

Ultra-Fit Sr R-R 4Ckt 600Mm Disc Sn (Discontinued)

  • Mfr # 2174651043
  • Zoro # G005926159
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2174651043
Zoro #
G005926159
UPC #
-
Country of Origin
India

Dimensions

Cable Length
600.00mm
Wire Size AWG
16
Wire Insulation Diameter
2.03-2.39mm

Details

Series
217465
Type
Discrete Wire Assembly
Application
Power, Wire-to-Board
Number of Rows
1
Color - Resin
Black
Plating min - Mating
1.524µm
Lock to Mating Part
Yes
Wire/Cable Type
UL 1061
Material - Plating Mating
Tin
Material - Plating Termination
Tin
Termination Interface: Style
Crimp or Compression
Material - Resin
Nylon
Voltage - Maximum
600V AC (RMS)/DC
Current - Maximum per Contact
14.0A
Circuits (Loaded)
4
Gender
Female-Female
Plating min - Termination
1.524µm
Material - Metal
High Conductivity Copper
Pitch - Mating Interface
3.50mm
Product Name
Ultra-Fit
Single Ended
No
Assembly Configuration
Dual Ended Connectors
Overmolded
No
Connector to Connector
Ultra-Fit-to-Ultra-Fit
