Shop MOLEX

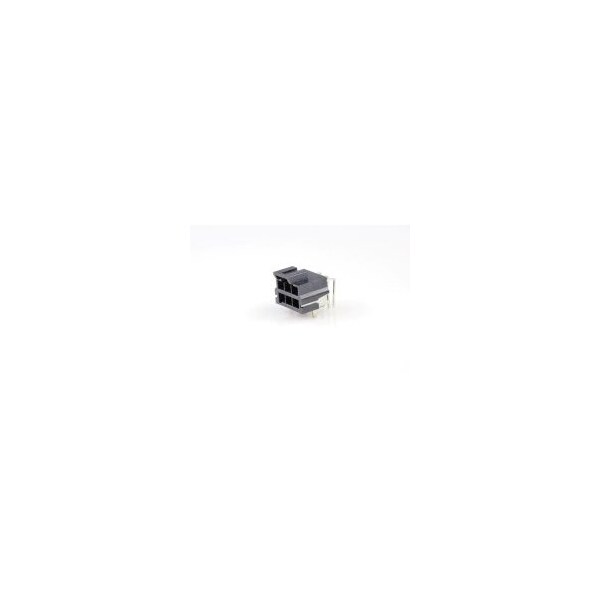

Ultrafit Hdr Rt 2R Blk 06 Ckt Tin

  • Mfr # 1723163106
  • Zoro # G605910145
product price:
$
1.49
/ea
Sold in multiples of 75 for $111.75

Key Features

Color
Black
Number of Rows
2
Series
172316
Max. Voltage
600V AC/DC
Application
Power, Wire-to-Board
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1723163106
Zoro #
G605910145
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
1.524 µm
PCB Thickness - Recommended
1.60mm
PC Tail Length
3.20mm

Details

Color
Black
Number of Rows
2
Series
172316
Max. Voltage
600V AC/DC
Application
Power, Wire-to-Board
Hole Center to Center
3.5 mm
Terminal Type
Through Hole
Features
Glow-Wire Capable; Surface Mount Compatible
Max. Temp.
105°C
Material
Liquid Crystal Polymer
Contact Finish
Matte Tin Plated
Terminal Finish
Matte Tin Plated
Number of Contacts
6
Current Rating
12 A
Temperature Range - Operating
-40° to +105°C
First Mate / Last Break
No
Polarized to PCB
Yes
Shrouded
Fully
Material - Metal
Copper Alloy
Orientation
Right Angle
Current - Maximum per Contact
12.0A
PCB Retention
Yes
Breakaway
No
Component Type
PCB Header
Lock to Mating Part
Yes
Guide to Mating Part
No
Keying to Mating Part
Yes
Material - Plating Termination
Matte Tin
Voltage - Maximum
600V AC (RMS)/DC
Pitch - Mating Interface
3.50mm
Plating min - Mating
1.524µm
Circuits (Loaded)
6
Polarized to Mating Part
Yes
Product Name
Ultra-Fit
Material - Resin
Liquid Crystal Polymer
Durability (mating cycles max)
25
Material - Plating Mating
Matte Tin
PCB Locator
Yes
Glow-Wire Capable
Yes
