  11. USB 3.0 F/A RVS RA REC CH=4.06 15u
This item is Discontinued.

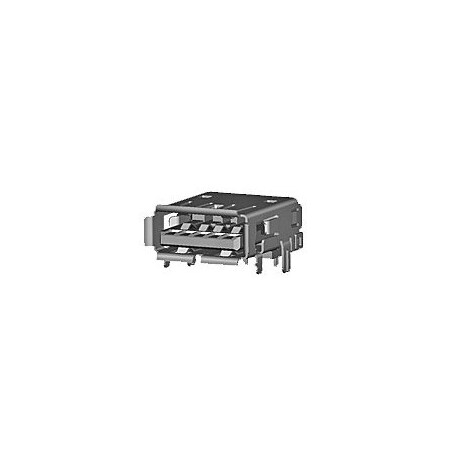

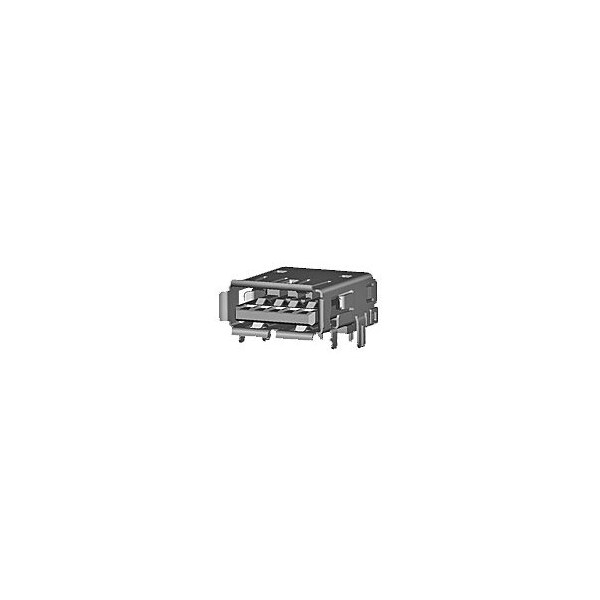

Molex USB 3.0 F/A RVS RA REC CH=4.06 15u 48392-0003

USB 3.0 F/A RVS RA REC CH=4.06 15u (Discontinued)

  • Mfr # 48392-0003
  • Zoro # G2756491
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
48392-0003
Zoro #
G2756491
UPC #
-
Country of Origin
China

Dimensions

PC Tail Length
1.10mm

Details

Application
Wire-to-Board
Component Type
Receptacle
Material - Resin
High Temperature Thermoplastic
Grounding to Panel
Yes
Durability (mating cycles max)
5000
Material - Plating Termination
Matte Tin
Temperature Range - Operating
-20° to +85°C
Polarized to Mating Part
Yes
Number of Rows
2
Ports
1
PCB Locator
Yes
Type
A
Voltage - Maximum
30V AC/DC
Orientation
Right Angle
Pitch - Termination Interface
2.00mm, 2.50mm
Product Name
USB 3.0
Circuits (Loaded)
9
Material - Metal
Copper Alloy
Pitch - Mating Interface
2.00mm, 2.50mm
PCB Retention
Yes
Circuits (maximum)
9
Color - Resin
Blue
Current - Maximum per Contact
1.8A
Polarized to PCB
Yes
Material - Plating Mating
Gold
Keying to Mating Part
Yes
Series
48392
Termination Interface: Style
Through Hole
Gender
Female
