  11. USB 3.0 F/A STD RA REC CH=6.09 15u
This item is Discontinued.

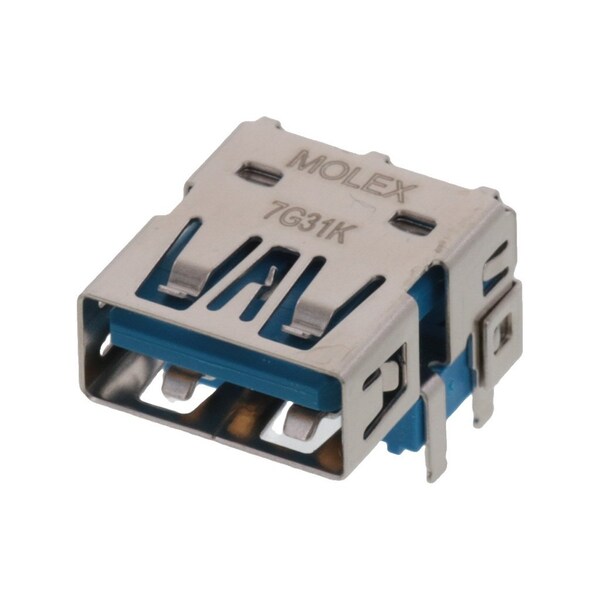

Molex USB 3.0 F/A STD RA REC CH=6.09 15u 48391-0003

USB 3.0 F/A STD RA REC CH=6.09 15u (Discontinued)

  • Mfr # 48391-0003
  • Zoro # G2757200
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
48391-0003
Zoro #
G2757200
UPC #
-
Country of Origin
China

Dimensions

PC Tail Length
1.50mm
PCB Thickness - Recommended
1.20mm

Details

Durability (mating cycles max)
5000
Current - Maximum per Contact
1.8A
Polarized to PCB
Yes
PCB Locator
Yes
Gender
Female
PCB Retention
Yes
Ports
1
Color - Resin
Blue
Temperature Range - Operating
-20° to +85°C
Material - Metal
Copper Alloy
Circuits (Loaded)
9
Keying to Mating Part
Yes
Duration at Max. Process Temperature (seconds)
5
Process Temperature max. C
255
Orientation
Right Angle
Material - Plating Mating
Gold
Pitch - Mating Interface
2.00mm, 2.50mm
Termination Interface: Style
Through Hole
Material - Plating Termination
Matte Tin
Pitch - Termination Interface
2.00mm, 2.50mm
Max. Cycles at Max. Process Temperature
1
Material - Resin
High Temperature Thermoplastic
Voltage - Maximum
30V AC/DC
Number of Rows
2
Circuits (maximum)
9
Polarized to Mating Part
Yes
