  11. USB 3.0 F/A Upright RVS REC CH=1.25 15u
This item is Discontinued.

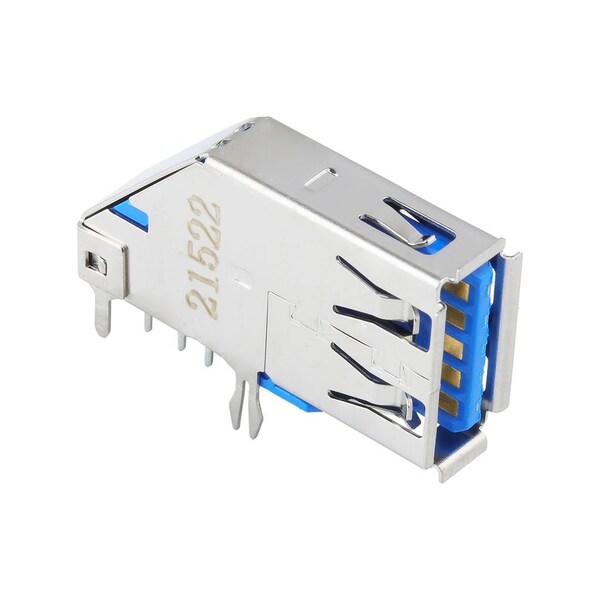

Molex USB 3.0 F/A Upright RVS REC CH=1.25 15u 48404-0003

USB 3.0 F/A Upright RVS REC CH=1.25 15u (Discontinued)

  • Mfr # 48404-0003
  • Zoro # G600457164
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
48404-0003
Zoro #
G600457164
UPC #
-
Country of Origin
China

Dimensions

PC Tail Length
2.40mm

Details

Color - Resin
Blue
Polarized to Mating Part
Yes
Ports
1
Pitch - Mating Interface
2.00mm, 2.50mm
Process Temperature max. C
255
Circuits (Loaded)
9
Orientation
Upright
Duration at Max. Process Temperature (seconds)
5
Polarized to PCB
Yes
Gender
Female
Panel Mount
No
Durability (mating cycles max)
5000
Voltage - Maximum
30V AC/DC
PCB Retention
Yes
Material - Metal
Copper Alloy
Keying to Mating Part
Yes
Number of Rows
2
Current - Maximum per Contact
1.8A
Max. Cycles at Max. Process Temperature
1
Lock to Mating Part
No
Material - Plating Termination
Gold
Pitch - Termination Interface
2.00mm, 2.50mm
Temperature Range - Operating
-20° to +85°C
Material - Resin
High Temperature Thermoplastic
Material - Plating Mating
Nickel, Tin
PCB Locator
Yes
Grounding to Panel
Yes
Termination Interface: Style
Through Hole
