  11. uUSB AB Rec BotMt Flange TH Gray 0.60
This item is Discontinued.

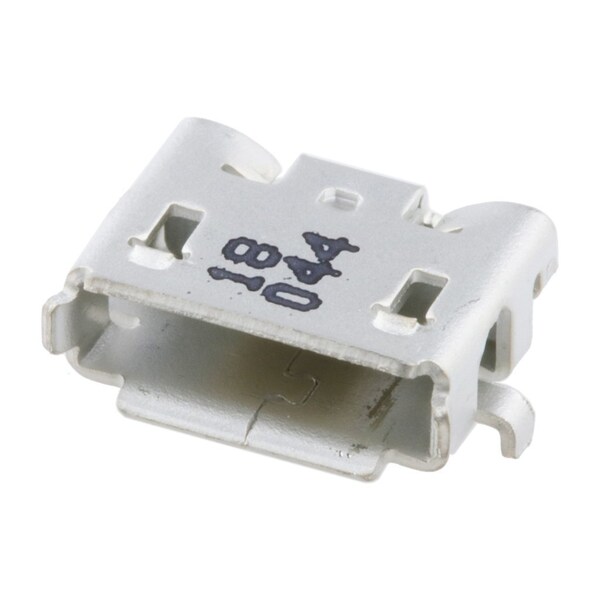

Molex uUSB AB Rec BotMt Flange TH Gray 0.60 47589-1001

uUSB AB Rec BotMt Flange TH Gray 0.60 (Discontinued)

  • Mfr # 47589-1001
  • Zoro # G4037963
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
47589-1001
Zoro #
G4037963
UPC #
-
Country of Origin
China

Details

Color - Resin
Gray
Grounding to Panel
Yes
Max. Cycles at Max. Process Temperature
1
Material - Metal
Copper Alloy
Material - Plating Mating
Gold
Current - Maximum per Contact
1.8A, 1.0A
Duration at Max. Process Temperature (seconds)
3
Material - Resin
High Temperature Thermoplastic
Pitch - Mating Interface
0.65mm
Flammability
94V-0
Orientation
Right Angle
UL
E107635
Circuits (maximum)
5
Polarized to Mating Part
Yes
Surface Mount Compatible (SMC)
Yes
Shield Type
Full Shield
Circuits (Loaded)
5
Shielded
Yes
Number of Rows
1
Process Temperature max. C
245
Material - Plating Termination
Gold
Durability (mating cycles max)
10000
Voltage - Maximum
30V AC (RMS)
Pitch - Termination Interface
0.65mm
Gender
Female
Temperature Range - Operating
-30° to +85°C
Termination Interface: Style
Surface Mount
Keying to Mating Part
Yes
Ports
1
