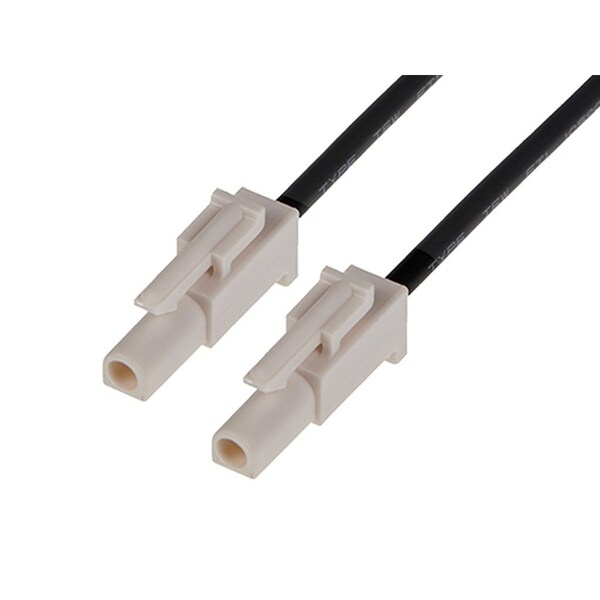

Molex Wire Connector, 14 AWG Max, Bare, Nylon Insulation, 600 V, 12 A 2162901013 - main

Wire Connector, 14 AWG Max, Bare, Nylon Insulation, 600 V, 12 A

  • Mfr # 2162901013

  • Zoro # G705789641

product price:  $2.75
/ea
Sold in multiples of 34 for $93.50

Key Features

Type
Crimp
Color
Natural
Maximum Wire Size
14 AWG
Minimum Wire Size
14 AWG
Insulation Material
Nylon
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2162901013
Zoro #
G705789641
UPC #
-
Country of Origin
India

Dimensions

Maximum Wire Size
14 AWG
Minimum Wire Size
14 AWG
Length
600 mm
Max. Insulation Dia.
4.06 mm
Contact Plating Thickness
0.508 µm
Wire Insulation Diameter
1.65-4.06mm
Cable Length
600.00mm

Details

Item
Cable Assembly/Connector
Type
Crimp
Color
Natural
Insulation Material
Nylon
Maximum Voltage
600V AC/DC
Current
12 A
RoHS Compliant
Yes
Series
216290
Material
Brass
Hole Center to Center
6.7 mm
Finish
Tin Plated
Application
Power, Wire-to-Wire
Number of Rows
1
Number of Contacts
1
Overmolded
No
Circuits (Loaded)
1
Material - Plating Mating
Tin
Wire/Cable Type
UL 1015
Pitch - Mating Interface
6.70mm
Lock to Mating Part
Yes
Material - Plating Termination
Tin
Connector to Connector
Standard 093"-to-Standard 093"
Assembly Configuration
Dual Ended Connectors
Single Ended
No
Plating min - Mating
0.508µm
Maximum Conductors
1
