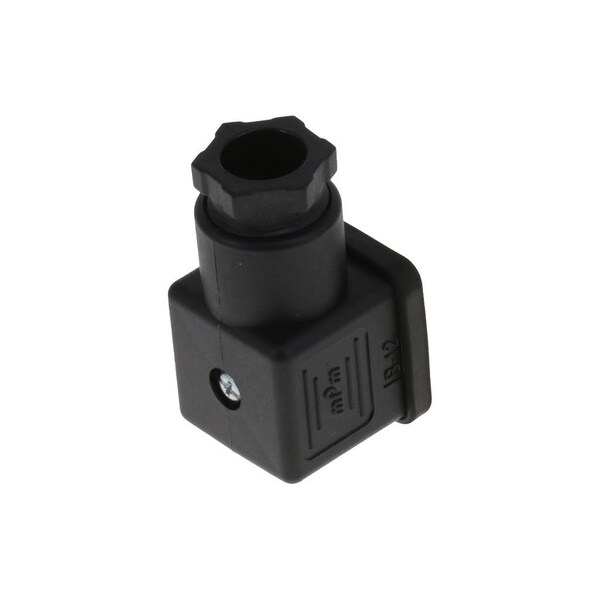

Wire Connector, 16 AWG Max, Polyamide Insulation, 250 V, 16 A
Mfr # 1210230278
Zoro # G800442397
product price:Â
$
3.39
/ea
Sold in multiples of 23 for $77.97
Key Features
Maximum Wire Size
16 AWG
Insulation Material
Polypropylene
Maximum Voltage
250V AC/300V DC
Current
16 A
Minimum Operating Temperature
-40 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1210230278
- Zoro #
- G800442397
- UPC #
- 883906248956
- Country of Origin
- United States
Dimensions
- Maximum Wire Size
- 16 AWG
- Cable Diameter
- 8.00-10.00mm (0.315-0.394")
Details
- Item
- Wire Connector
- Insulation Material
- Polypropylene
- Maximum Voltage
- 250V AC/300V DC
- Current
- 16 A
- Minimum Operating Temperature
- -40 Degrees C
- Maximum Operating Temperature
- 90 Degrees C
- RoHS Compliant
- Yes
- Series
- 121023
- Material
- Brass
- IP Rating
- IP65
- Poles
- 2
- Diagnostics / LEDs
- No
- Coupling Type
- Internal Thread
- Keyway
- None
- Material - Plating Mating
- Silver
- Pitch - Mating Interface
- 18.00mm
- Orientation
- 90° Angle
