Contact our U.S. based teamSpecifications
Product Information
MFR #
1200850012
Zoro #
G2745343
UPC #
-
Country of Origin
Poland
Dimensions
Cable Diameter
3.30-6.60mm (.130-.260")
Wire Size (AWG)
18
Details
IP Rating
IP69K
Coupling Type
Push to Lock
Material - Connector Body
PA
Approvals
cCSAus certified
Diagnostics / LEDs
No
Material - Coupling Nut
Nickel-plated Brass
Temperature Range - Operating
-25°C to +90°C
Keyway
Single
Gender
Female
Type
Field Attachable Connector
CSA
LR6837

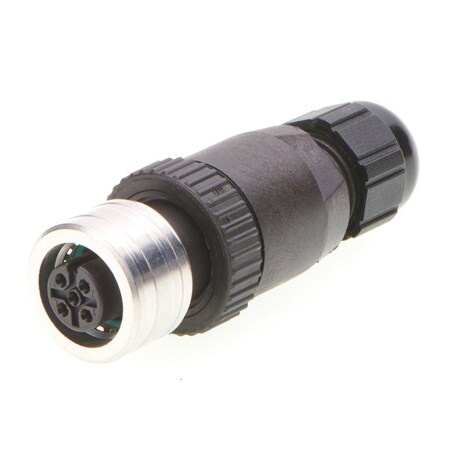

Product Name
Ultra-Lock (M12)
Voltage - Maximum
30V AC / 36V DC
Material - Contact
Brass
Current - Maximum per Contact
4.0A
Poles
5
Series
120085
Material - Plating Mating
Gold
Orientation
Straight
Description
