  11. MIC 4P M/MFE 15M ST/90 22/4
This item is Discontinued.

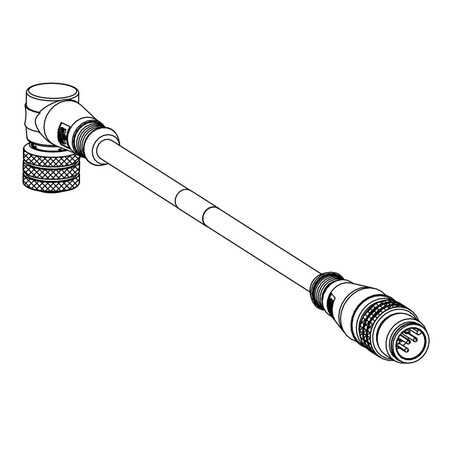

Molex MIC 4P M/MFE 15M ST/90 22/4 1200660377

MIC 4P M/MFE 15M ST/90 22/4 (Discontinued)

  • Mfr # 1200660377
  • Zoro # G2090274
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1200660377
Zoro #
G2090274
UPC #
78678850030
Country of Origin
United States

Dimensions

Wire Size AWG
22
Cable Length
1.50m (4.92')
Cable Diameter
5.30mm (.209")

Details

Keyway
Single
Material - O-Ring
Fluoro-elastomer
Current - Maximum per Contact
4.0A
Coupling Style
Threaded
Orientation
90° to Straight
CSA
LR6837
Wire/Cable Type
PLTC-ER
Color - Cable Jacket
Yellow
Poles
4
Material - Connector Body
TPE
Temperature Range - Operating
-20°C to +105°C
UL
E152210
Material - Coupling Nut
Nickel-plated Brass
Gender
Female-Male
Material - Plating Mating
Gold
Voltage - Maximum
250V AC/DC
Material - Cable Jacket
TPE
Series
120066
Product Name
Micro-Change (M12)
Connector End A
Micro-Change (M12)
Connector End B
Micro-Change (M12)
LED Indicator
No
Type
Double Ended
IP Rating
IP67
Material - Contact
Copper Alloy

Description
