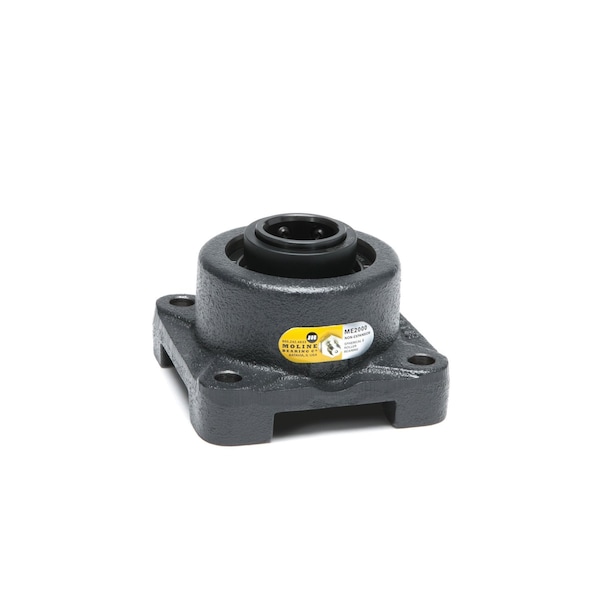

4 Bolt Flange Bearing, Cast Iron, Set Screw

  • Mfr # 29211203
  • Zoro # G708663726
product price:
$
533.99
/ea
Free Shipping & Returns

Key Features

Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Insert Material
Steel
Mount Hole Center-to-Center Length
4-7/8 in
Dynamic Load Capacity
22,400 lbf
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
29211203
Zoro #
G708663726
UPC #
-
Country of Origin
United States
Item
4 Bolt Flange Bearing
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Insert Material
Steel
Dynamic Load Capacity
22,400 lbf
Static Load Capacity
26,500 lb
Housing Type
Square
Seal Material
Nitrile
System of Measurement
Inch
Number of Mount Holes
4
Resistance Properties
Dust and Dirt-Resistant, Rust-Resistant
Bearing Lubrication
Relubricateable
Maximum Temperature
250 Degrees F
Split Housing
Not Split
Housing Material Grade
Class 30
Series
ME2000
Static Radial Load Capacity
26,500 lbf
Closure
Double Sealed
Lubrication Openings
Zirc Fitting
Expansion Type
Fixed
Self Lubricating Bearing
No
Minimum Temperature
0 Degrees F
Bearing Insert Type
Spherical Roller
Bore Type
Cylindrical
Bearing Material Grade
AISI 52100
Load Direction
Radial
Included Bearing
Spherical E Roller Bearing
Includes Bearing Cap
Bearing Cap Not Included
Internal Clearance
C2
Maximum Misalignment Angle
1.5 Degrees
Number of Rows
2
Lubricant Material
Lithium Complex Grease - NLGI #2
Maximum Speed
2,150 RPM
Seal Type
Contact
Application
Air Handling, Conveying, Food Processing, Laundries, Paper and Forestry, Screening
Features
Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, Built with SKF(TM) and Timken(TM) Spherical Roller Bearings, For Applications that Require Expansion and Misalignment Capability and a Type E Dimensional Footprint

Dimensions

Mount Hole Center-to-Center Length
4-7/8 in
Flange Thickness
1 3/8 in
Bore Diameter
2 3/16 in
Overall Length
6 1/4 in
Fits Chest Size
Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, Built with SKF(TM) and Timken(TM) Spherical Roller Bearings, For Applications that Require Expansion and Misalignment Capability and a Type E Dimensional "Footprint"
Bolt Circle Diameter
6.894 in
Overall Height
3 17/64 in
Mount Hole Center-to-Center Height
4 7/8 in
Bore Diameter Tolerance
-0.0010 in
Mounting Bolt Size
5/8 in
Overall Width
6 1/4 in
Mount Hole Size
5/8 in
Pilot Diameter
4.875 in
Length
6 1/4 in

Description

ME2000 4-BOLT FLANGE NON-EXP
