Shop MOLINE BEARING

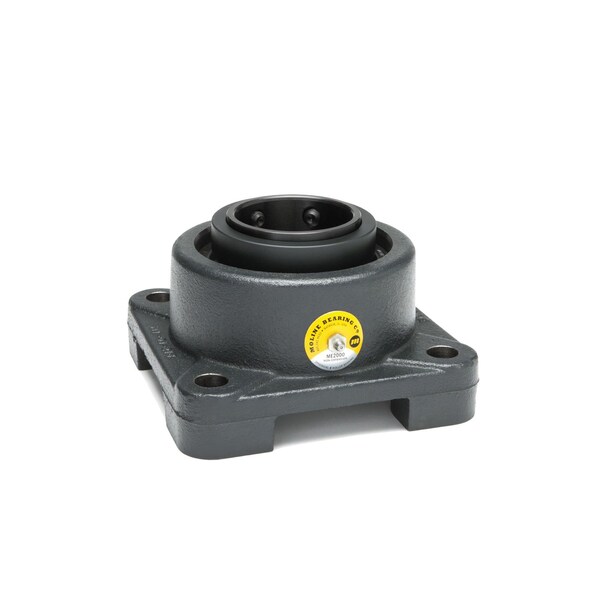

4 Bolt Flange Bearing, Cast Iron, Set Screw

  • Mfr # 29211208
  • Zoro # G308663249
product price:
$
581.99
/ea
Free Shipping & Returns

Key Features

Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Insert Material
Steel
Mount Hole Center-to-Center Length
5-3/8 in
Dynamic Load Capacity
33,300 lbf
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
29211208
Zoro #
G308663249
UPC #
-
Country of Origin
United States
Item
4 Bolt Flange Bearing
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Insert Material
Steel
Dynamic Load Capacity
33,300 lbf
Housing Type
Square
Static Load Capacity
41,100 lb
Seal Material
Nitrile
System of Measurement
Inch
Number of Mount Holes
4
Internal Clearance
C2
Number of Rows
2
Closure
Double Sealed
Housing Material Grade
Class 30
Bearing Lubrication
Relubricateable
Series
ME2000
Includes Bearing Cap
Bearing Cap Not Included
Bearing Material Grade
AISI 52100
Self Lubricating Bearing
No
Minimum Temperature
0 Degrees F
Lubrication Openings
Zirc Fitting
Static Radial Load Capacity
41,100 lbf
Resistance Properties
Dust and Dirt-Resistant, Rust-Resistant
Maximum Speed
1,800 RPM
Seal Type
Contact
Maximum Temperature
250 Degrees F
Split Housing
Not Split
Bore Type
Cylindrical
Lubricant Material
Lithium Complex Grease - NLGI #2
Maximum Misalignment Angle
1.5 Degrees
Expansion Type
Fixed
Load Direction
Radial
Bearing Insert Type
Spherical Roller
Included Bearing
Spherical E Roller Bearing
Application
Air Handling, Conveying, Food Processing, Laundries, Paper and Forestry, Screening
Features
Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, Built with SKF(TM) and Timken(TM) Spherical Roller Bearings, For Applications that Require Expansion and Misalignment Capability and a Type E Dimensional Footprint

Dimensions

Mount Hole Center-to-Center Length
5-3/8 in
Bore Diameter Tolerance
-0.0010 in
Flange Thickness
1 1/2 in
Bore Diameter
2 1/2 in
Fits Chest Size
Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, Built with SKF(TM) and Timken(TM) Spherical Roller Bearings, For Applications that Require Expansion and Misalignment Capability and a Type E Dimensional "Footprint"
Overall Width
6 7/8 in
Mount Hole Size
5/8 in
Overall Length
6 7/8 in
Mounting Bolt Size
5/8 in
Mount Hole Center-to-Center Height
5 3/8 in
Bolt Circle Diameter
7.601 in
Pilot Diameter
5.75 in
Overall Height
3 9/16 in
Length
6 7/8 in

Description

ME2000 4-BOLT FLANGE NON-EXP
