Shop MOLINE BEARING

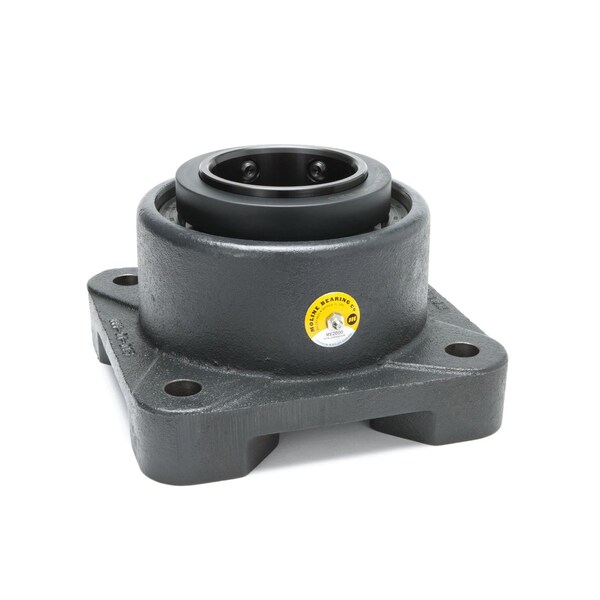

4 Bolt Flange Bearing, Cast Iron, Set Screw

  • Mfr # 29211311
  • Zoro # G408663415
product price:
$
1,547.99
/ea
Free Shipping & Returns

Key Features

Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Insert Material
Steel
Mount Hole Center-to-Center Length
7-3/4 in
Dynamic Load Capacity
69,900 lbf
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
29211311
Zoro #
G408663415
UPC #
-
Country of Origin
United States
Item
4 Bolt Flange Bearing
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Insert Material
Steel
Dynamic Load Capacity
69,900 lbf
Housing Type
Square
Static Load Capacity
93,300 lb
Seal Material
Nitrile
System of Measurement
Inch
Number of Mount Holes
4
Lubricant Material
Lithium Complex Grease - NLGI #2
Maximum Speed
1,200 RPM
Series
ME2000
Included Bearing
Spherical E Roller Bearing
Number of Rows
2
Static Radial Load Capacity
93,300 lbf
Application
Air Handling, Conveying, Food Processing, Laundries, Paper and Forestry, Screening
Bore Type
Cylindrical
Resistance Properties
Dust and Dirt-Resistant, Rust-Resistant
Internal Clearance
C2
Bearing Material Grade
AISI 52100
Bearing Insert Type
Spherical Roller
Closure
Double Sealed
Minimum Temperature
0 Degrees F
Expansion Type
Fixed
Seal Type
Contact
Housing Material Grade
Class 30
Bearing Lubrication
Relubricateable
Maximum Temperature
250 Degrees F
Split Housing
Not Split
Maximum Misalignment Angle
1.5 Degrees
Lubrication Openings
Zirc Fitting
Self Lubricating Bearing
No
Load Direction
Radial
Includes Bearing Cap
Bearing Cap Not Included
Features
Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, Built with SKF(TM) and Timken(TM) Spherical Roller Bearings, For Applications that Require Expansion and Misalignment Capability and a Type E Dimensional Footprint

Dimensions

Mount Hole Center-to-Center Length
7-3/4 in
Bore Diameter Tolerance
-0.0010 in
Mount Hole Size
7/8 in
Overall Length
10 1/4 in
Bolt Circle Diameter
10.96 in
Fits Chest Size
Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, Built with SKF(TM) and Timken(TM) Spherical Roller Bearings, For Applications that Require Expansion and Misalignment Capability and a Type E Dimensional "Footprint"
Mount Hole Center-to-Center Height
7 3/4 in
Mounting Bolt Size
7/8 in
Bore Diameter
3 11/16 in
Overall Width
10 1/4 in
Flange Thickness
2 1/8 in
Pilot Diameter
8.437 in
Overall Height
5 5/8 in
Length
10 1/4 in

Description

ME2000 4-BOLT FLANGE NON-EXP
