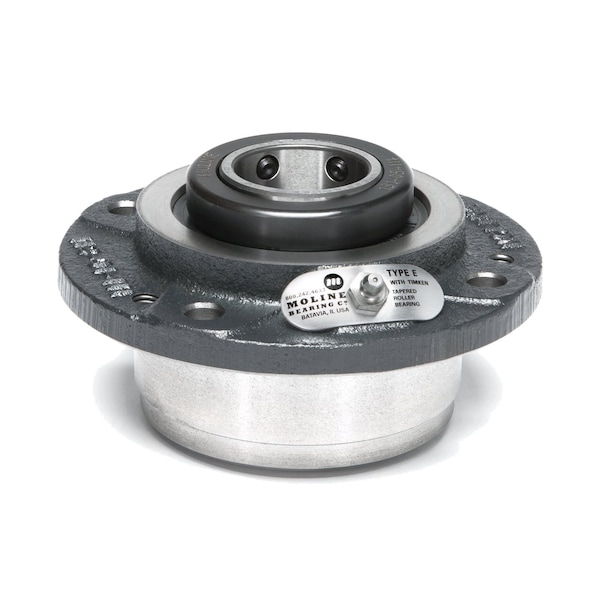

4 Holes, Circular Housing, Piloted Flange Bearing, Roller, 1-15/16 in Dia, Cast Iron, Set Screw

Mfr # 19331115
Zoro # G1161296

385.99

Free Shipping & Returns

Key Features

System of Measurement

Inch

Housing Type

Circular

Number of Mount Holes

Bearing Insert Type

Roller

Shaft Locking Type

Set Screw

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 19331115
Zoro #: G1161296
UPC #: -
Country of Origin: United States

Dimensions

Bolt Size: 7/16 in
Bore Diameter: 1-15/16 in
Mount Hole Center-to-Center Length: 5-3/8 in
Overall Length: 6-3/8 in
Overall Width: 3-1/2 in
Overall Height: 6-3/8 in
Flange Thickness: 1-9/16 in
Dimension D: 5 3/8 in
Dimension H: 9/16 in
Dimension B: 6 3/8 in
Dimension M: 3 4/5 in
Dimension E: 1 3/16 in
Dimension P: 1 1/32 in
Dimension A: 3 1/2 in
Dimension G: 1 9/16 in
Dimension F: 7/16 in
Dimension L: 3 3/8 in
Dimension C: 2 29/32 in
Mount Hole Center-to-Center Height: 5 3/8 in
Mounting Bolt Size: 7/16 in
Mount Hole Size: 7/16 in
Bolt Circle Diameter: 5.375 in
Wire Rope Length: 6 3/8 in
Length: 6 3/8 in
Pilot Diameter: 4.5 in
Overall Diameter: 6.375 in
Back Side to Center Width: 1.187 in
Bore Diameter Tolerance: +0.000 in to -0.0010 in

Details

System of Measurement: Inch
Item: Piloted Flange Bearing
Housing Type: Circular
Number of Mount Holes: 4
Bearing Insert Type: Roller
Shaft Locking Type: Set Screw
Housing Material: Cast Iron
Bearing Insert Material: Steel
Seal Material: Nitrile
Static Load Capacity: 43,000 lb
Dynamic Load Capacity: 10,300 lbf
Bearing Lubrication: Relubricateable
Includes: Timken Type E Tapered Roller Bearing
Temp. Range: -40 Degrees to 250 Degrees F
Features: Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, Close Fit Oversized Collars Act as Flingers for Additional Protection in Dusty or Damp Environments, Standard V-Guard(TM) Nitrile and Teflon Contact Seal or Balanced Labyrinth Seal, Timken(TM) Lithium Complex Grease Operating Temperature is upto 250 Degrees , High Temperature Grease is Available upto 350 Degrees
Lubrication Openings: Grease Fitting
Bearing Material Grade: AISI 52100
Maximum Temperature: 250 Degrees F
Load Direction: Radial, Thrust
Static Radial Load Capacity: 43,000 lbf
Housing Material Finish: Painted
Expansion Type: Fixed
Application: Aggregate, Conveying, Cranes, Forestry, Gas, Mining, Oil, Power Generation, Screening
Housing Material Grade: Class 30
Lubricant Material: Lithium Complex Grease - NLGI #2
Rolling Element Rows: 2
Closure: Double Sealed
Bore Type: Cylindrical
Seal Type: Contact
Minimum Temperature: 0 Degrees F
Series: Type E
Number of Rows: 2
Maximum Misalignment Angle: 0.05 Degrees
Split Housing: Not Split
Included Bearing: NPE367DEE-401C4
Maximum Speed: 2,650 RPM
Internal Clearance: C2
Includes Bearing Cap: Bearing Cap Not Included
Resistance Properties: Dust and Dirt-Resistant, Rust-Resistant
Self Lubricating Bearing: No

Description

Flange Mount Bearing, Back Side to Center Width 1.187 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Tapered Roller, Bore Diameter 1 15/16 in, Bore Type Cylindrical, Center Height Not Applicable, Closure Double Sealed, Expansion Type Fixed, For Environment Not Applicable, Housing Material Cast Iron, Housing Type Circular, Included Bearing NPE367DEE-401C4, Lubricant Material Lithium Complex Grease - NLGI #2, Maximum Speed 2,650 RPM, Maximum Temperature 250 Degrees F
