Shop MOLINE BEARING

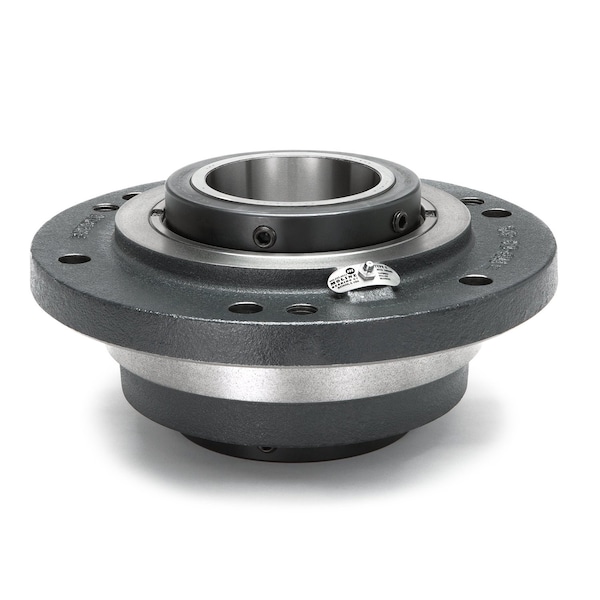

4 Holes, Circular Housing, Piloted Flange Bearing, Tapered Roller, 4-7/16 in Dia, Cast Iron, Set Screw

  • Mfr # 19331407
  • Zoro # G1161101
product price:
$
2,673.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Housing Type
Circular
Number of Mount Holes
4
Bearing Insert Type
Tapered Roller
Shaft Locking Type
Set Screw
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
19331407
Zoro #
G1161101
UPC #
-
Country of Origin
United States

Dimensions

Bolt Size
3/4 in
Bore Diameter
4-7/16 in
Mount Hole Center-to-Center Length
11-3/4 in
Overall Length
65-1/2 in
Overall Width
6-3/4 in
Overall Height
65-1/2 in
Flange Thickness
3-1/32 in
Dimension G
3 1/32 in
Dimension E
1 1/2 in
Dimension M
5 9/100 in
Dimension A
6 3/4 in
Dimension H
1 in
Dimension P
2 in
Dimension L
6 1/4 in
Dimension F
3/4 in
Dimension D
11 3/4 in
Dimension C
4 5/8 in
Dimension B
13 1/2 in
Bolt Circle Diameter
11.75 in
Mount Hole Center-to-Center Height
11 3/4 in
Mounting Bolt Size
3/4 in
Mount Hole Size
3/4 in
Wire Rope Length
65 1/2 in
Length
13 1/2 in
Back Side to Center Width
1.5 in
Overall Diameter
13.5 in
Pilot Diameter
10.25 in
Bore Diameter Tolerance
+0.000 in to -0.0015 in

Details

System of Measurement
Inch
Item
Piloted Flange Bearing
Housing Type
Circular
Number of Mount Holes
4
Bearing Insert Type
Tapered Roller
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Insert Material
Steel
Dynamic Load Capacity
33,000 lbf
Temp. Range
-40 Degrees to 250 Degrees F
Seal Material
Nitrile
Bearing Lubrication
Relubricateable
Includes
Timken Type E Tapered Roller Bearing
Static Load Capacity
188,400 lb
Maximum Temperature
250 Degrees F
Lubrication Openings
Grease Fitting
Lubricant Material
Lithium Complex Grease - NLGI #2
Expansion Type
Fixed
Features
Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, Close Fit Oversized Collars Act as Flingers for Additional Protection in Dusty or Damp Environments, Standard V-Guard(TM) Nitrile and Teflon Contact Seal or Balanced Labyrinth Seal, Timken(TM) Lithium Complex Grease Operating Temperature is upto 250 Degrees , High Temperature Grease is Available upto 350 Degrees
Application
Aggregate, Conveying, Cranes, Forestry, Gas, Mining, Oil, Power Generation, Screening
Bearing Material Grade
AISI 52100
Housing Material Grade
Class 30
Minimum Temperature
0 Degrees F
Housing Material Finish
Painted
Closure
Double Sealed
Load Direction
Radial, Thrust
Bore Type
Cylindrical
Rolling Element Rows
2
Seal Type
Contact
Static Radial Load Capacity
188,400 lbf
Series
Type E
Split Housing
Not Split
Maximum Misalignment Angle
0.05 Degrees
Number of Rows
2
Included Bearing
64443DE
Self Lubricating Bearing
No
Internal Clearance
C2
Includes Bearing Cap
Bearing Cap Not Included
Resistance Properties
Dust and Dirt-Resistant, Rust-Resistant
Maximum Speed
1,360 RPM

Description

Flange Mount Bearing, Back Side to Center Width 1.5 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Tapered Roller, Bore Diameter 4 7/16 in, Bore Type Cylindrical, Center Height Not Applicable, Closure Double Sealed, Expansion Type Fixed, For Environment Not Applicable, Housing Material Cast Iron, Housing Type Circular, Included Bearing 64443DE, Lubricant Material Lithium Complex Grease - NLGI #2, Maximum Speed 1,360 RPM, Maximum Temperature 250 Degrees F
