Shop MOLINE BEARING

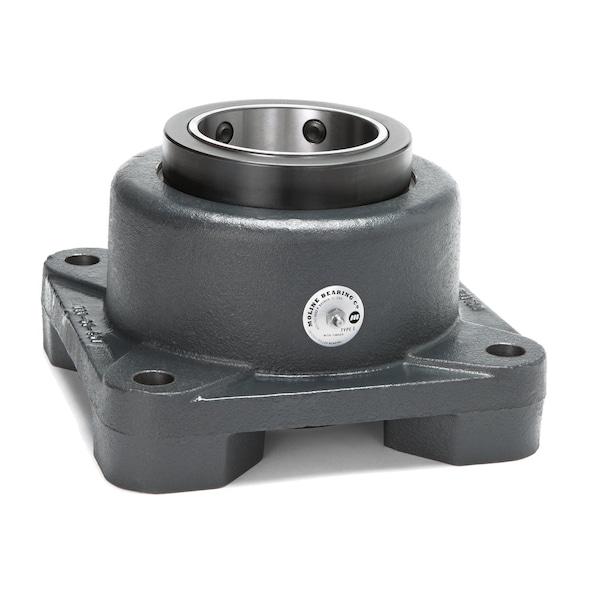

4 Holes, Square Housing, 4 Bolt Flange Bearing, Roller, 3-3/16 in Dia, Cast Iron, Set Screw

  • Mfr # 19311303
  • Zoro # G1160797
product price:
$
1,084.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Housing Type
Square
Number of Mount Holes
4
Bearing Insert Type
Roller
Shaft Locking Type
Set Screw
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
19311303
Zoro #
G1160797
UPC #
-
Country of Origin
United States

Dimensions

Bolt Size
3/4 in
Bore Diameter
3-3/16 in
Mount Hole Center-to-Center Length
7 in
Overall Length
9-1/4 in
Overall Width
5 in
Overall Height
9-1/4 in
Flange Thickness
1-7/8 in
Dimension B
9 1/4 in
Dimension D
7 in
Dimension H
1 7/8 in
Dimension F
3/4 in
Dimension A
5 in
Dimension J
7 5/8 in
Dimension L
5 5/16 in
Dimension E
1/4 in
Dimension C
4 1/2 in
Mounting Bolt Size
3/4 in
Mount Hole Size
3/4 in
Mount Hole Center-to-Center Height
7 in
Wire Rope Length
9 1/4 in
Length
9 1/4 in
Pilot Diameter
7.625 in
Bore Diameter Tolerance
+0.000 in to -0.0010 in
Bolt Circle Diameter
9.899 in

Details

System of Measurement
Inch
Item
4 Bolt Flange Bearing
Housing Type
Square
Number of Mount Holes
4
Bearing Insert Type
Roller
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Insert Material
Steel
Seal Material
Nitrile
Bearing Lubrication
Relubricateable
Static Load Capacity
108000 lb
Includes
Timken Type E Tapered Roller Bearing
Temp. Range
-40 Degrees to 250 Degrees F
Dynamic Load Capacity
19,600 lbf
Load Direction
Radial, Thrust
Seal Type
Contact
Housing Material Finish
Painted
Expansion Type
Fixed
Closure
Double Sealed
Features
Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, Close Fit Oversized Collars Act as Flingers for Additional Protection in Dusty or Damp Environments, Standard V-Guard(TM) Nitrile and Teflon Contact Seal or Balanced Labyrinth Seal, Timken(TM) Lithium Complex Grease Operating Temperature is upto 250 Degrees , High Temperature Grease is Available upto 350 Degrees
Lubricant Material
Lithium Complex Grease - NLGI #2
Maximum Temperature
250 Degrees F
Application
Aggregate, Conveying, Cranes, Forestry, Gas, Mining, Oil, Power Generation, Screening
Lubrication Openings
Grease Fitting
Rolling Element Rows
2
Minimum Temperature
0 Degrees F
Bore Type
Cylindrical
Bearing Material Grade
AISI 52100
Housing Material Grade
Class 30
Static Radial Load Capacity
108,600 lbf
Series
Type E
Split Housing
Not Split
Maximum Misalignment Angle
0.05 Degrees
Included Bearing
42318DE
Number of Rows
2
Internal Clearance
C2
Maximum Speed
1,640 RPM
Self Lubricating Bearing
No
Resistance Properties
Dust and Dirt-Resistant, Rust-Resistant
Includes Bearing Cap
Bearing Cap Not Included

Description

Flange Mount Bearing, Back Side to Center Width Not Applicable, Bearing Insert Material Alloy Steel, Bearing Insert Type Tapered Roller, Bore Diameter 3 3/16 in, Bore Type Cylindrical, Center Height Not Applicable, Closure Double Sealed, Expansion Type Fixed, For Environment Not Applicable, Housing Material Cast Iron, Housing Type Square, Included Bearing 42318DE, Lubricant Material Lithium Complex Grease - NLGI #2, Maximum Speed 1,640 RPM, Maximum Temperature 250 Degrees F
