Shop MOLINE BEARING

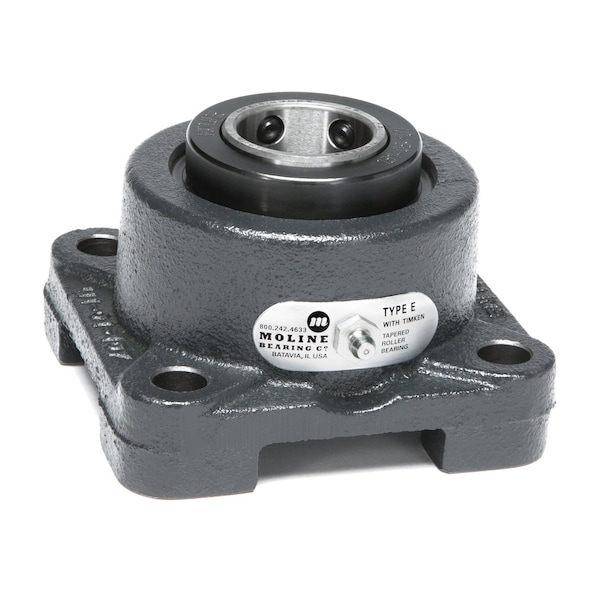

4 Holes, Square Housing, 4 Bolt Flange Bearing, Tapered Roller, 1-1/4 in Dia, Cast Iron, Set Screw

  • Mfr # 19311104
  • Zoro # G1161138
product price:
$
267.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Housing Type
Square
Number of Mount Holes
4
Bearing Insert Type
Tapered Roller
Shaft Locking Type
Set Screw
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
19311104
Zoro #
G1161138
UPC #
-
Country of Origin
United States

Dimensions

Bolt Size
3/8 in
Bore Diameter
1-1/4 in
Mount Hole Center-to-Center Length
2-7/8 in
Overall Length
3-3/4 in
Overall Width
2-3/4 in
Overall Height
3-3/4 in
Flange Thickness
1 in
Dimension F
3/8 in
Dimension D
2 7/8 in
Dimension J
2 15/16 in
Dimension B
3 3/4 in
Dimension E
1/16 in
Dimension H
1 in
Dimension C
2 11/32 in
Dimension A
2 3/4 in
Dimension L
2 1/4 in
Mounting Bolt Size
3/8 in
Mount Hole Size
3/8 in
Mount Hole Center-to-Center Height
2 7/8 in
Wire Rope Length
3 3/4 in
Length
3 3/4 in
Pilot Diameter
2.937 in
Bolt Circle Diameter
4.066 in
Bore Diameter Tolerance
+0.000 in to -0.0005 in

Details

System of Measurement
Inch
Item
4 Bolt Flange Bearing
Housing Type
Square
Number of Mount Holes
4
Bearing Insert Type
Tapered Roller
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Insert Material
Steel
Seal Material
Nitrile
Bearing Lubrication
Relubricateable
Dynamic Load Capacity
3,810 lbf
Static Load Capacity
15,760 lb
Temp. Range
-40 Degrees to 250 Degrees F
Includes
Timken Type E Tapered Roller Bearing
Bearing Material Grade
AISI 52100
Load Direction
Radial, Thrust
Rolling Element Rows
2
Maximum Temperature
250 Degrees F
Expansion Type
Fixed
Housing Material Grade
Class 30
Lubrication Openings
Grease Fitting
Lubricant Material
Lithium Complex Grease - NLGI #2
Application
Aggregate, Conveying, Cranes, Forestry, Gas, Mining, Oil, Power Generation, Screening
Seal Type
Contact
Bore Type
Cylindrical
Minimum Temperature
0 Degrees F
Features
Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, Close Fit Oversized Collars Act as Flingers for Additional Protection in Dusty or Damp Environments, Standard V-Guard(TM) Nitrile and Teflon Contact Seal or Balanced Labyrinth Seal, Timken(TM) Lithium Complex Grease Operating Temperature is upto 250 Degrees , High Temperature Grease is Available upto 350 Degrees
Housing Material Finish
Painted
Static Radial Load Capacity
15,760 lbf
Closure
Double Sealed
Series
Type E
Split Housing
Not Split
Included Bearing
NPE08125DEE-401C4
Maximum Misalignment Angle
0.05 Degrees
Number of Rows
2
Self Lubricating Bearing
No
Includes Bearing Cap
Bearing Cap Not Included
Internal Clearance
C2
Maximum Speed
3,800 RPM
Resistance Properties
Dust and Dirt-Resistant, Rust-Resistant

Description

Flange Mount Bearing, Back Side to Center Width Not Applicable, Bearing Insert Material Alloy Steel, Bearing Insert Type Tapered Roller, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Center Height Not Applicable, Closure Double Sealed, Expansion Type Fixed, For Environment Not Applicable, Housing Material Cast Iron, Housing Type Square, Included Bearing NPE08125DEE-401C4, Lubricant Material Lithium Complex Grease - NLGI #2, Maximum Speed 3,800 RPM, Maximum Temperature 250 Degrees F
