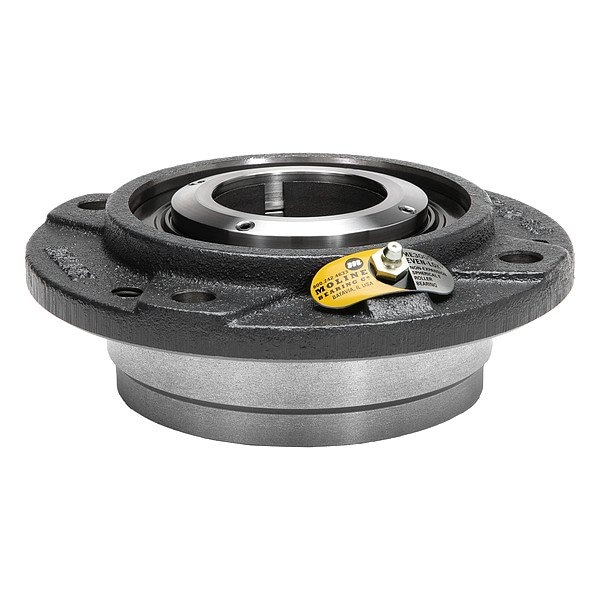

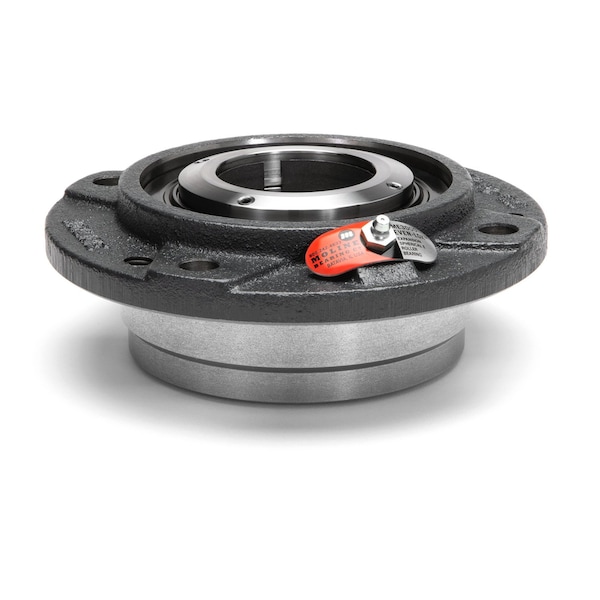

6 Holes, Circular Housing, Piloted Flange Bearing, Spherical Roller, 4-7/16 in Dia, Cast Iron, Concentric Locking Collar

  • Mfr # 29731407

  • Zoro # G413868195

product price:  $3,259.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Housing Type
Circular
Number of Mount Holes
6
Bearing Insert Type
Spherical Roller
Shaft Locking Type
Concentric Locking Collar
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
29731407
Zoro #
G413868195
UPC #
-
Country of Origin
United States

Dimensions

Bore Diameter
4-7/16 in
Mount Hole Center-to-Center Length
11-3/4 in
Overall Length
13-1/2 in
Overall Width
13-1/2 in
Overall Height
3-15/16 in
Flange Thickness
1-1/4 in
Mounting Bolt Size
3/4 in
Mount Hole Center-to-Center Height
5 3/32 in

Details

System of Measurement
Inch
Item
Piloted Flange Bearing
Housing Type
Circular
Number of Mount Holes
6
Bearing Insert Type
Spherical Roller
Shaft Locking Type
Concentric Locking Collar
Housing Material
Cast Iron
Bearing Insert Material
Steel
Minimum Temperature
-40 Degrees F
Rolling Element Rows
2
Expansion Type
Fixed
Maximum Temperature
250 Degrees F
Maximum Speed
1,150 RPM
Includes Mounting Hardware
Yes
Lubricant Material
LC-2 Lithium Complex Grease
Split Housing
Not Split
Included Bearing
Spherical Roller Bearing
Seal Type
Contact
Application
Air Handling, Conveying, High Speed Fans, Industrial Laundries, Screening
Features
Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, Built with SKF(TM) Explorer Spherical Roller Bearings
Bore Type
Cylindrical
Bearing Material Grade
52100
Housing Material Grade
Iron
Closure
Single Sealed
Seal Material
Nitrile
Dynamic Load Capacity
128500 lbf
Static Load Capacity
143800 lb

Description

ME3000 PILOTED FLANGE NON-EXP
