Shop MOLINE BEARING

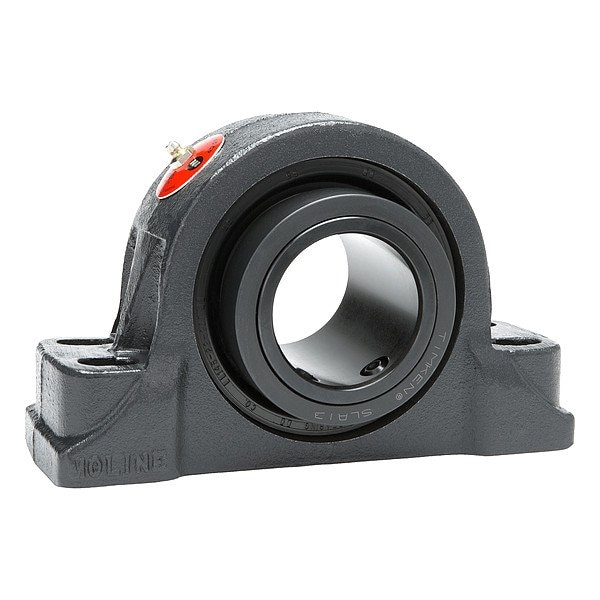

Pillow Block Bearing, Cast Iron Housing Material, Set Screw, Spherical Roller, 2-7/16 in Dia, Alloy Steel Insert Material

  • Mfr # 29141207

  • Zoro # G313866444

product price:
$
616.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Insert Type
Spherical Roller
Bearing Insert Material
Alloy Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
29141207
Zoro #
G313866444
UPC #
-
Country of Origin
United States

Dimensions

Bore Diameter
2-7/16 in
Center Height
2-3/4 in
Mount Hole Center-to-Center Length
8-1/2 in
Overall Length
10-1/2 in
Overall Width
3.875 in
Overall Height
5-1/2 in
Bore Diameter Tolerance
+0.0000/-0.0010 in
Mounting Bolt Size
5/8 in
Wire Rope Length
10.5 in
Length
10.5 in

Details

System of Measurement
Inch
Item
Pillow Block Bearing
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Insert Type
Spherical Roller
Bearing Insert Material
Alloy Steel
Closure
Double Sealed
Expansion Type
Expansion
Number of Mount Holes
4
Maximum Speed
1,800 RPM
Seal Type
Contact
Maximum Temperature
250 Degrees F
Static Radial Load Capacity
41,100 lbf
Application
Air Handling, Conveying, Food Processing, Laundries, Paper and Forestry, Screening
Included Bearing
Timken Spherical Roller
Dynamic Radial Load Capacity
33,300 lbf
Features
Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, For Applications that Require Expansion and Misalignment Capability and a Type E Dimensional "Footprint", Piloted Flange Housings are Machined with Back-Out Holes, Precision Ground Contours, Single Piece Outer Race is Grooved and Has 3 Lube Holes for Even Distribution of Grease, Will Accommodate Moderate Thrust Loads and Permits Angular Misalignment without Loss of Capacity
Seal Material
Nitrile
Bearing Material Grade
AISI 52100
Minimum Temperature
-40 Degrees F
Lubricant Material
Lithium Complex Grease - NLGI #2
Bore Type
Cylindrical
Internal Clearance
CN
Series
ME2000
Split Housing
Not Split
Bearing Lubrication
Relubricateable

Description

ME2000 4-BOLT PB EXP
