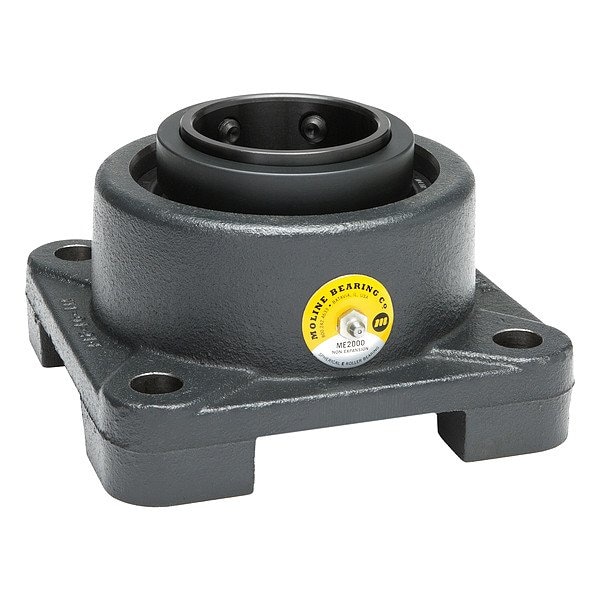

Pillow Block Bearing, Cast Iron Housing Material, Set Screw, Spherical Roller, 5 in Dia, Steel Insert Material

  • Mfr # 29241500

  • Zoro # G413866436

product price:  $3,750.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Insert Type
Spherical Roller
Bearing Insert Material
Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
29241500
Zoro #
G413866436
UPC #
-
Country of Origin
United States

Dimensions

Bore Diameter
5 in
Center Height
5-1/2 in
Mount Hole Center-to-Center Length
15-1/2 in
Overall Length
18-1/2 in
Overall Width
6.687 in
Overall Height
10.875 in
Bore Diameter Tolerance
+0.0000 in to -0.0015 in
Mounting Bolt Size
7/8 in
Base Width
5-1/8 in
Base Height
3 in

Details

System of Measurement
Inch
Item
Pillow Block Bearing
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Insert Type
Spherical Roller
Bearing Insert Material
Steel
Closure
Double Sealed
Dynamic Radial Load Capacity
123,000 lbf
Expansion Type
Fixed
Number of Mount Holes
4
Static Radial Load Capacity
180,000 lbf
Maximum Temperature
250 Degrees F
Maximum Speed
900 RPM
Included Bearing
Spherical E Roller Bearing
Features
Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, For Applications that Require Expansion and Misalignment Capability and a Type E Dimensional "Footprint", Piloted Flange Housings are Machined with Back-Out Holes, Precision Ground Contours, Single Piece Outer Race is Grooved and Has 3 Lube Holes for Even Distribution of Grease, Standard Units Have One Locking Collar, Double Collar Spherical (D) Insert Option is Available in Selected Sizes, Will Accommodate Moderate Thrust Loads and Permits Angular Misalignment without Loss of Capacity
Application
Air Handling, Conveying, Food Processing, Laundries, Paper and Forestry, Screening
Seal Type
Contact
Minimum Temperature
-40 Degrees F
Seal Material
Nitrile
Lubricant Material
LC-2 Lithium Complex Grease
Bearing Material Grade
AISI 52100
Bore Type
Cylindrical

Description

ME2000 4-BOLT PB NON-EXP
