Shop MOLINE BEARING

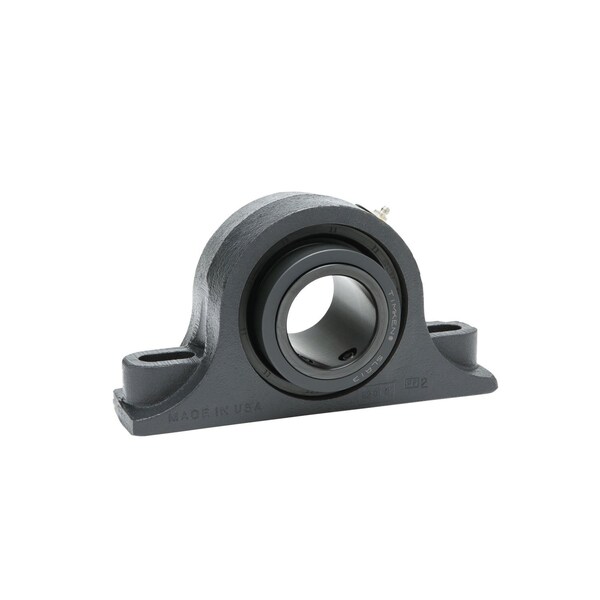

Pillow Block Bearing, Cast Iron Housing Material, Set Screw, Spherical Roller, Steel Insert Material

  • Mfr # 29221204
  • Zoro # G408663583
product price:
$
571.99
/ea
Free Shipping & Returns

Key Features

Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Insert Type
Spherical Roller
Bearing Insert Material
Steel
Center Height
2-3/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
29221204
Zoro #
G408663583
UPC #
-
Country of Origin
United States

Dimensions

Center Height
2-3/4 in
Mount Hole Center-to-Center Length
7-7/8 in
Mounting Bolt Size
5/8 in
Base Width
10.5 in
Base Height
1.63 in
Overall Length
10.5 in
Fits Chest Size
Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, For Applications that Require Expansion and Misalignment Capability and a Type E Dimensional "Footprint", Piloted Flange Housings are Machined with Back-Out Holes, Precision Ground Contours, Single Piece Outer Race is Grooved and Has 3 Lube Holes for Even Distribution of Grease, Will Accommodate Moderate Thrust Loads and Permits Angular Misalignment without Loss of Capacity
Bore Diameter
2 1/4 in
Bore Diameter Tolerance
+0.0000/-0.0010 in
Inner Ring Width
3.13 in
Mount Hole Size
1 1/2 in
Overall Height
5.687 in
Overall Width
3.437 in
Length
10.5 in

Details

Item
Pillow Block Bearing
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Insert Type
Spherical Roller
Bearing Insert Material
Steel
Seal Type
Contact
Dynamic Radial Load Capacity
22,400 lbf
Static Radial Load Capacity
26,500 lbf
Seal Material
Nitrile
System of Measurement
Inch
Closure
Double Sealed
Lubricant Material
Lithium Complex Grease - NLGI #2
Bore Type
Cylindrical
Number of Mount Holes
2
Expansion Type
Fixed
Split Housing
Not Split
Included Bearing
Timken Spherical Roller
Mount Type
Bolt-Through
Application
Air Handling, Conveying, Food Processing, Laundries, Paper and Forestry, Screening
Minimum Temperature
-40 Degrees F
Maximum Speed
1,800 RPM
Maximum Temperature
250 Degrees F
Bearing Material Grade
AISI 52100
Series
ME2000
Bearing Lubrication
Relubricateable
Internal Clearance
CN
Features
Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, For Applications that Require Expansion and Misalignment Capability and a Type E Dimensional "Footprint", Piloted Flange Housings are Machined with Back-Out Holes, Precision Ground Contours, Single Piece Outer Race is Grooved and Has 3 Lube Holes for Even Distribution of Grease, Will Accommodate Moderate Thrust Loads and Permits Angular Misalignment without Loss of Capacity

Description

ME2000 2-BOLT PB NON-EXP
