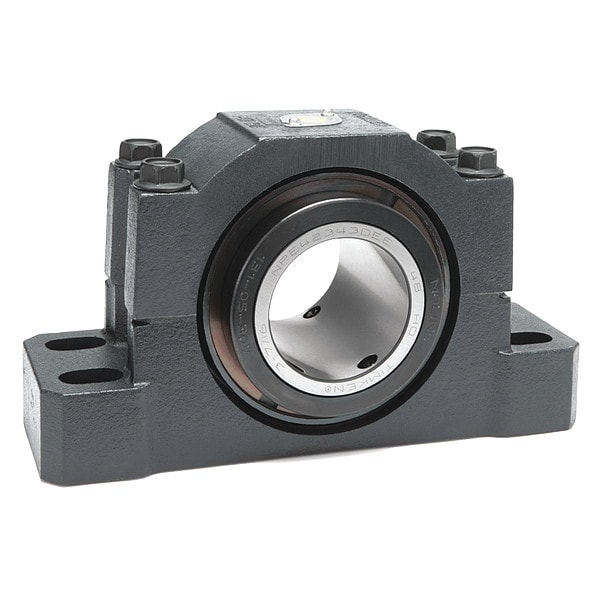

Moline Bearing Pillow Block Brg, 2 7/16in Bore, Duct Iron 49342207 - main

Pillow Block Brg, 2 7/16in Bore, Duct Iron

  • Mfr # 49342207

  • Zoro # G1160937

product price: $720.99
/ea
Free Shipping & Returns

Key Features

Bearing Insert Type
Tapered Roller
Bore Dia.
2 7/16 in
Shaft Locking Type
Set Screws
Bearing Housing Material Type
Ductile Iron
Bearing Insert Material
Alloy Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
49342207
Zoro #
G1160937
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
2 7/16 in
Dimension H
1 5/8 in
Overall Height
6.125 in
Dimension C
3 1/2 in
Dimension G
1 1/4 in
Dimension F
5/8 in
Dimension M
2 3/4 in
Dimension L
4 in
Dimension D
8 1/2 in
Overall Width
4 in
Overall Length
10.375 in
Dimension A
4 in
Bolt Size
5/8 in
Dimension B
10 3/8 in
Dimension J
6 1/8 in
Base Width
3.5 in
Bore Diameter
2 7/16 in
Base Height
1.63 in
Center Height
2 3/4 in
Mounting Bolt Size
5/8 in
Mount Hole Size
1 1/4 in
Mount Hole Center-to-Center Length
8 1/2 in
Mount Hole Center-to-Center Width
1 7/8 in

Description

Pillow Block Bearing, Base Height 1.63 in, Base Width 3.5 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Tapered Roller, Bore Diameter 2 7/16 in, Bore Type Cylindrical, Center Height 2 3/4 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Ductile Iron, Included Bearing Non-Expansion Timken Type E Tapered Roller, Lubricant Material Lithium Complex Grease, Maximum Speed 2,100 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F
